Tlačni regulator »multifix«, Velikost 5, G 1, 0.1 - 3 bar
SKU: 100431RIE
EAN: 4047322164573

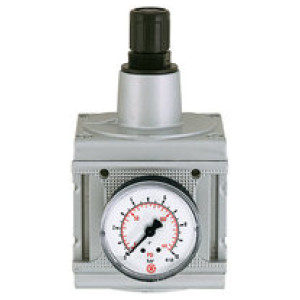

Pressure regulator »multifix«, incl. pressure gauge, Size 5, G 1, Input pressure max. 16 bar, Control range 0.1 - 3 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the button down.
Čas dobave: Predvidoma 3 - 5 dni
219,32 €
ali od 10,71 € / mesec
Izračunaj obrok
Obrestno financiranje
- 10,71 € x 24 mesecev
- 20,49 € x 12 mesecev
- 40,09 € x 6 mesecev
- 79,29 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Ohišje | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | DN | Zaslon manometra max. [bar] | D [mm] | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Max. notranja poraba zraka | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100430RIE | G 3/4 | Die-cast zinc | 0.5 | 3 | 16 | 20 | 25 | 35.1 | 68.8 | 99.0 | 134.1 | 8700 | Čas dobave: Predvidoma 3 - 5 dni | 85,28 € |  | ||
| 100431RIE | G 1 | Aluminium | 0.1 | 5 | 3 | 25 | 4 | 51.5 | 100.0 | 128.0 | 179.5 | 17500 | 0,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 219,32 € | | |
| 100425RIE | G 1/2 | Die-cast zinc | 0.5 | 3 | 10 | 15 | 16 | 35.1 | 68.8 | 99.0 | 134.1 | 8700 | Čas dobave: Predvidoma 3 - 5 dni | 85,28 € | | ||
| 100424RIE | G 1/2 | Die-cast zinc | 0.2 | 3 | 6 | 15 | 10 | 35.1 | 68.8 | 99.0 | 134.1 | 8700 | Čas dobave: Predvidoma 3 - 5 dni | 85,28 € | | ||
| 133099RIE | G 3/4 | Die-cast aluminium | 0.5 | 4 | 10 | 20 | 16 | 53.0 | 85.0 | 125.0 | 178.0 | 12000 | 1,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 176,41 € | | |
| 100417RIE | G 1/4 | Die-cast zinc | 0.5 | 1 | 10 | 6 | 16 | 27.8 | 47.8 | 67.0 | 94.8 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 57,07 € | | ||
| 100415RIE | G 1/4 | Die-cast zinc | 0.1 | 1 | 3 | 6 | 4 | 27.8 | 47.8 | 67.0 | 94.8 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 57,07 € | | ||
| 100419RIE | G 3/8 | Die-cast zinc | 0.1 | 1 | 3 | 10 | 4 | 27.8 | 47.8 | 67.0 | 94.8 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 57,07 € | | ||
| 100427RIE | G 3/4 | Die-cast zinc | 0.1 | 3 | 3 | 20 | 4 | 35.1 | 68.8 | 99.0 | 134.1 | 8700 | Čas dobave: Predvidoma 3 - 5 dni | 85,28 € | | ||
| 100416RIE | G 1/4 | Die-cast zinc | 0.2 | 1 | 6 | 6 | 10 | 27.8 | 47.8 | 67.0 | 94.8 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 57,07 € | | ||
| 133100RIE | G 3/4 | Die-cast aluminium | 0.5 | 4 | 16 | 20 | 25 | 53.0 | 85.0 | 125.0 | 178.0 | 12000 | 1,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 176,41 € | | |
| 100420RIE | G 3/8 | Die-cast zinc | 0.2 | 1 | 6 | 10 | 10 | 27.8 | 47.8 | 67.0 | 94.8 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 57,07 € | | ||
| 100432RIE | G 1 | Aluminium | 0.2 | 5 | 6 | 25 | 10 | 51.5 | 100.0 | 128.0 | 179.5 | 17500 | 0,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 219,32 € | | |
| 100422RIE | G 3/8 | Die-cast zinc | 0.5 | 1 | 16 | 10 | 25 | 27.8 | 47.8 | 67.0 | 94.8 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 57,07 € | | ||
| 133101RIE | G 1 | Die-cast aluminium | 0.1 | 4 | 3 | 25 | 4 | 53.0 | 85.0 | 125.0 | 178.0 | 12000 | 1,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 176,41 € | | |
| 100433RIE | G 1 | Aluminium | 0.5 | 5 | 10 | 25 | 16 | 51.5 | 100.0 | 128.0 | 179.5 | 17500 | 0,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 219,32 € | | |
| 100421RIE | G 3/8 | Die-cast zinc | 0.5 | 1 | 10 | 10 | 16 | 27.8 | 47.8 | 67.0 | 94.8 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 57,07 € | | ||
| 100423RIE | G 1/2 | Die-cast zinc | 0.1 | 3 | 3 | 15 | 4 | 35.1 | 68.8 | 99.0 | 134.1 | 8700 | Čas dobave: Predvidoma 3 - 5 dni | 85,28 € | | ||
| 100429RIE | G 3/4 | Die-cast zinc | 0.5 | 3 | 10 | 20 | 16 | 35.1 | 68.8 | 99.0 | 134.1 | 8700 | Čas dobave: Predvidoma 3 - 5 dni | 85,28 € | | ||
| 100426RIE | G 1/2 | Die-cast zinc | 0.5 | 3 | 16 | 15 | 25 | 35.1 | 68.8 | 99.0 | 134.1 | 8700 | Čas dobave: Predvidoma 3 - 5 dni | 85,28 € | | ||
| 133098RIE | G 3/4 | Die-cast aluminium | 0.2 | 4 | 6 | 20 | 10 | 53.0 | 85.0 | 125.0 | 178.0 | 12000 | 1,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 176,41 € | | |
| 100418RIE | G 1/4 | Die-cast zinc | 0.5 | 1 | 16 | 6 | 25 | 27.8 | 47.8 | 67.0 | 94.8 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 57,07 € | | ||
| 133097RIE | G 3/4 | Die-cast aluminium | 0.1 | 4 | 3 | 20 | 4 | 53.0 | 85.0 | 125.0 | 178.0 | 12000 | 1,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 176,41 € | | |
| 100428RIE | G 3/4 | Die-cast zinc | 0.2 | 3 | 6 | 20 | 10 | 35.1 | 68.8 | 99.0 | 134.1 | 8700 | Čas dobave: Predvidoma 3 - 5 dni | 85,28 € | | ||
| 133102RIE | G 1 | Die-cast aluminium | 0.2 | 4 | 6 | 25 | 10 | 53.0 | 85.0 | 125.0 | 178.0 | 12000 | 1,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 176,41 € | | |
| 100434RIE | G 1 | Aluminium | 0.5 | 5 | 16 | 25 | 25 | 51.5 | 100.0 | 128.0 | 179.5 | 17500 | 0,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 217,33 € | | |
| 133103RIE | G 1 | Die-cast aluminium | 0.5 | 4 | 10 | 25 | 16 | 53.0 | 85.0 | 125.0 | 178.0 | 12000 | 1,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 176,41 € | | |
| 133104RIE | G 1 | Die-cast aluminium | 0.5 | 4 | 16 | 25 | 25 | 53.0 | 85.0 | 125.0 | 178.0 | 12000 | 1,5 l/min (depending on secondary pressure) | Čas dobave: Predvidoma 3 - 5 dni | 176,41 € | |
Opis
Pressure regulator »multifix«, incl. pressure gauge, Size 5, G 1, Input pressure max. 16 bar, Control range 0.1 - 3 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the button down.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 5 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Vzmet pokrova motorja | POM-brass |
| Pretok [l/min] | 17500 |
| Min. krmilno območje [bar] | 0.1 |
| Max. krmilno območje [bar] | 3 |
| Zaslon manometra max. [bar] | 4 |
| DN | 25 |

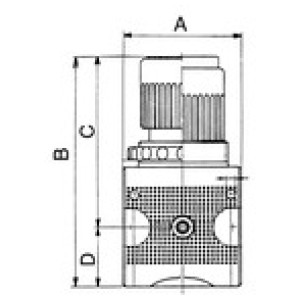

| A [mm] | 100.0 |
| B [mm] | 179.5 |
| C [mm] | 128.0 |
| D [mm] | 51.5 |
| Ohišje | Aluminium |
| Serija | multifix |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 0,5 l/min (depending on secondary pressure) |
