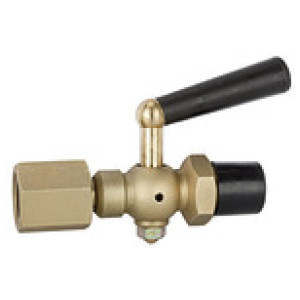

Zaporni ventili manometrov, pipa - rotirajoča puša, G 1/2 slika

* slike so simbolične

Zaporni ventili manometrov, pipa - rotirajoča puša, G 1/2

SKU: 102655RIE
EAN: 9090150

Block valve pressure gauge, Taps - rotating bushing, bright brass, G 1/2, PN 25 bar, AF 27, max. 50 °C, Test flange 60x25x10

It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe.

When the lever is set to the »blow out« position, the medium is discharged into the atmosphere.

Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.

Čas dobave: Predvidoma 3 - 5 dni
53,94 €
ali od 19,55 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 19,55 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Različica Zaloga Cena Nakup Natisni
102655RIE male / loose (rotatable) female, with test flange 60x25x10
Čas dobave: Predvidoma 3 - 5 dni
53,94 € Natisni
102654RIE male / loose (rotatable) female
Čas dobave: Predvidoma 3 - 5 dni
36,94 € Natisni

Opis

Block valve pressure gauge, Taps - rotating bushing, bright brass, G 1/2, PN 25 bar, AF 27, max. 50 °C, Test flange 60x25x10

It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe.

When the lever is set to the »blow out« position, the medium is discharged into the atmosphere.

Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.

Tehnični podatki in specifikacije

Navoj G 1/2
PN [bar] 25
a/f [mm] 27
Max. temperaturno območje [°C] 50
Ročica Plastic
Ohišje Brass with a bare metal surface
Testna prirobnica 60x25x10
Različica male / loose (rotatable) female, with test flange 60x25x10
Aplikacije For all pressure gauges with a flat gasket acc. to DIN 16258
