Serv. enota 2-delna »Stinard«Zašč. kletkaVel. 4G 1
SKU: 101057RIE
EAN: 4047322121910

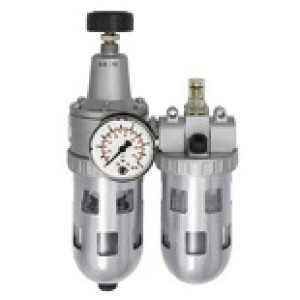

Service unit 2-part »Standard«, PC container, protective cage, Size 4, G 1, Input pressure max. 16 bar, Control range 0.5 - 10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Serv. enota 2-delna »Stinard«Zašč. kletkaVel. 4G 1
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc / aluminium, painted silver
Posoda: Polycarbonate container with protective cage
Serija: Standard

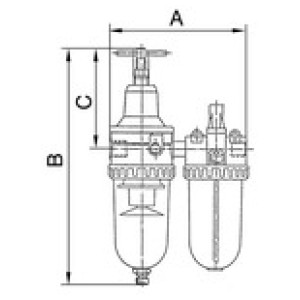

C [mm]: 190.6
A [mm]: 220.0
B [mm]: 452.0
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc / aluminium, painted silver
Posoda: Polycarbonate container with protective cage
Serija: Standard
C [mm]: 190.6
A [mm]: 220.0
B [mm]: 452.0
| Šifra | Navoj | Velikost | Rang filtra [µm] | DN | Manometer Ø [mm] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101055RIE | G 1/2 | 3 | 5 | 15 | 63 | 130.0 | 175.0 | 299.4 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 261,56 € |  | |
| 174101RIE | G 1 | 4 | 40 | 25 | 63 | 129.0 | 222.0 | 392.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | 557,92 € | | |
| 101056RIE | G 3/4 | 4 | 40 | 20 | 63 | 190.6 | 220.0 | 452.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 101052RIE | G 1/4 | 1 | 5 | 6 | 50 | 106.5 | 117.0 | 236.2 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 160,34 € | | |
| 101053RIE | G 3/8 | 1 | 5 | 6 | 50 | 106.5 | 117.0 | 236.2 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 160,34 € | | |
| 101054RIE | G 3/8 | 2 | 40 | 10 | 63 | 120.5 | 150.0 | 266.4 | 800 | Čas dobave: Predvidoma 3 - 5 dni | 261,56 € | | |
| 101057RIE | G 1 | 4 | 40 | 25 | 63 | 190.6 | 220.0 | 452.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Service unit 2-part »Standard«, PC container, protective cage, Size 4, G 1, Input pressure max. 16 bar, Control range 0.5 - 10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Ohišje | Die-cast zinc / aluminium, painted silver |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 4000 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Odtok kondenzata | Semi-automatic |
| DN | 25 |
| Manometer Ø [mm] | 63 |
| Vidna kupola | PA |
| Rang filtra [µm] | 40 |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 220.0 |
| B [mm] | 452.0 |
| C [mm] | 190.6 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
