Serv. enota 2-delna »Stinard«Zašč. kletkaVel.1,G 3/8
SKU: 101053RIE
EAN: 4047322120869

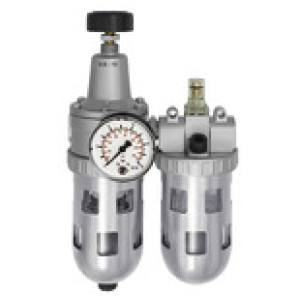

Service unit 2-part »Standard«, PC container, protective cage, Size 1, G 3/8, Input pressure max. 16 bar, Control range 0.5-10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Obrestno financiranje
- 14,97 € x 12 mesecev
- 29,29 € x 6 mesecev
- 57,92 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Velikost | Rang filtra [µm] | DN | Manometer Ø [mm] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101055RIE | G 1/2 | 3 | 5 | 15 | 63 | 130.0 | 175.0 | 299.4 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 261,56 € |  | |
| 174101RIE | G 1 | 4 | 40 | 25 | 63 | 129.0 | 222.0 | 392.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | 557,92 € | | |
| 101056RIE | G 3/4 | 4 | 40 | 20 | 63 | 190.6 | 220.0 | 452.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 101052RIE | G 1/4 | 1 | 5 | 6 | 50 | 106.5 | 117.0 | 236.2 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 160,34 € | | |
| 101053RIE | G 3/8 | 1 | 5 | 6 | 50 | 106.5 | 117.0 | 236.2 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 160,34 € | | |
| 101054RIE | G 3/8 | 2 | 40 | 10 | 63 | 120.5 | 150.0 | 266.4 | 800 | Čas dobave: Predvidoma 3 - 5 dni | 261,56 € | | |
| 101057RIE | G 1 | 4 | 40 | 25 | 63 | 190.6 | 220.0 | 452.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Service unit 2-part »Standard«, PC container, protective cage, Size 1, G 3/8, Input pressure max. 16 bar, Control range 0.5-10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Ohišje | Die-cast zinc / aluminium, painted silver |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 600 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Odtok kondenzata | Semi-automatic |
| DN | 6 |
| Manometer Ø [mm] | 50 |
| Vidna kupola | PA |
| Rang filtra [µm] | 5 |
| Posoda | Polycarbonate container with protective cage |

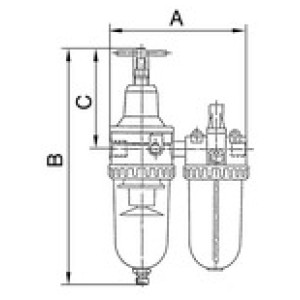

| A [mm] | 117.0 |
| B [mm] | 236.2 |
| C [mm] | 106.5 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
