* slike so simbolične

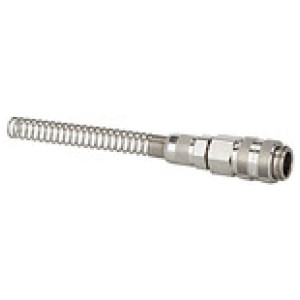

Hitre spojke I.D. 5,ponikljana medenina, toga, cev 8x6
SKU: 107172RIE
EAN: 4047322285469
Quick-connect coupling I.D. 5, nickel-plated brass, rigid, Hose connection 8x6, Operating pressure 0-35 bar, Temp. -20°C to 100°C
"One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.
"| Šifra | Povezava | Različica | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107174RIE | Hose connection 8x6 | Swivelling 360° | 142.5 | Čas dobave: Predvidoma 3 - 5 dni | 20,11 € |  | |
| 107173RIE | Hose connection 6x4 | Swivelling 360° | 134.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,11 € | | |
| 107171RIE | Hose connection 6x4 | Rigid | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,65 € | | |
| 107172RIE | Hose connection 8x6 | Rigid | 132.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,65 € | |
Opis
Quick-connect coupling I.D. 5, nickel-plated brass, rigid, Hose connection 8x6, Operating pressure 0-35 bar, Temp. -20°C to 100°C
"One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.
"Tehnični podatki in specifikacije
| DN | 5 |
| Povezava | Hose connection 8x6 |
| a/f [mm] | 14 |
| Dolžina [mm] | 132.0 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Nickel-plated brass |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 560 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Nickel-plated brass |
| Rokav | Nickel-plated brass |
| Pritrdilni obroč | Stainless steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Različica | Rigid |
