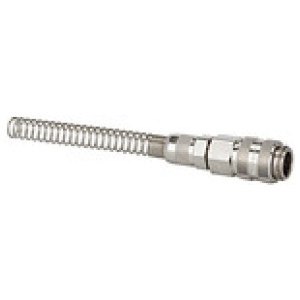

Hitre spojke I.D. 5,ponikljana medenina, toga, cev 6x4
SKU: 107171RIE
EAN: 4047322285438
Quick-connect coupling I.D. 5, nickel-plated brass, rigid, Hose connection 6x4, Operating pressure 0-35 bar, Temp. -20°C to 100°C
"One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.
"Šifra | Povezava | Različica | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
107174RIE | Hose connection 8x6 | Swivelling 360° | 142.5 | Čas dobave: Predvidoma 3 - 5 dni | 20,11 € | | |
107173RIE | Hose connection 6x4 | Swivelling 360° | 134.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,11 € | | |
107171RIE | Hose connection 6x4 | Rigid | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,65 € | | |
107172RIE | Hose connection 8x6 | Rigid | 132.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,65 € | |
Opis
Quick-connect coupling I.D. 5, nickel-plated brass, rigid, Hose connection 6x4, Operating pressure 0-35 bar, Temp. -20°C to 100°C
"One-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.
"Tehnični podatki in specifikacije
DN | 5 |
Povezava | Hose connection 6x4 |
a/f [mm] | 14 |
Dolžina [mm] | 120.0 |
Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
Ohišje | Nickel-plated brass |
Tesnilo | NBR |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Pretok | 560 l/min (air) |
Krogla | Stainless steel |
Vzmet | Stainless steel |
Telo ventila | Nickel-plated brass |
Rokav | Nickel-plated brass |
Pritrdilni obroč | Stainless steel |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
Različica | Rigid |
