Filter »Stinard«, Polikarbonat zbiralnik, 5 µm, Velikost 3, G 1
SKU: 100959RIE
EAN: 4047322338103

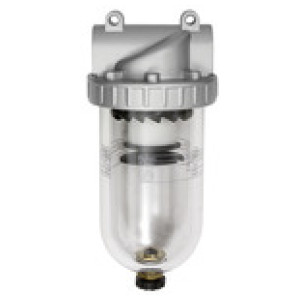

Filter »Standard« with polycarbonate container, 5 µm, Size 3, G 1, Input pressure max. 16 bar, Med. / ambient temp. max. 60 °C
Centrifugal separators with a sintered filter element.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 13,01 € x 12 mesecev
- 25,44 € x 6 mesecev
- 50,33 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Merjenje pretoka | Navoj | Velikost | DN | C [mm] | Rang filtra [µm] | H [mm] | A [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
100956RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 2 | 10 | 16.0 | 40 | 50.0 | 70.0 | 145.7 | 3100 | Čas dobave: Predvidoma 3 - 5 dni | 60,34 € | | |
100955RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 1 | 6 | 14.0 | 5 | 38.0 | 48.0 | 131.6 | 800 | Čas dobave: Predvidoma 3 - 5 dni | 32,79 € | | |
100961RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/2 | 4 | 45 | 36.5 | 40 | 105.0 | 125.0 | 243.4 | 12500 | Čas dobave: Predvidoma 3 - 5 dni | 257,29 € | | |
100962RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 2 | 5 | 55 | 41.0 | 60 | 120.0 | 148.0 | 394.4 | 30000 | Čas dobave: Predvidoma 3 - 5 dni | 736,77 € | | |
100954RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 1/4 | 1 | 6 | 14.0 | 5 | 38.0 | 48.0 | 131.6 | 800 | Čas dobave: Predvidoma 3 - 5 dni | 32,79 € | | |
206300RIE | At P2 = 6 bar and pressure drop ?p = 1 bar | G 3/8 | 2 | 10 | 16.0 | 5 | 50.0 | 70.0 | 145.7 | 3100 | Ni na zalogi | ? | Povpraševanje | |
100958RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 3/4 | 3 | 20 | 26.5 | 5 | 50.0 | 102.0 | 169.9 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | 140,30 € | | |
100959RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 1 | 3 | 25 | 26.5 | 5 | 50.0 | 90.0 | 169.9 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | 138,92 € | | |
100960RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/4 | 4 | 40 | 36.5 | 40 | 105.0 | 125.0 | 243.4 | 12500 | Čas dobave: Predvidoma 3 - 5 dni | 310,28 € | | |
100957RIE | At P2 = 6 bar and pressure drop Δp = 1 bar | G 1/2 | 3 | 15 | 18.0 | 5 | 50.0 | 79.0 | 168.4 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | 60,34 € | |
Opis
Filter »Standard« with polycarbonate container, 5 µm, Size 3, G 1, Input pressure max. 16 bar, Med. / ambient temp. max. 60 °C
Centrifugal separators with a sintered filter element.
Tehnični podatki in specifikacije
Navoj | G 1 |
Max. vhodni tlak [bar] | 16 |
Velikost | 3 |
Ohišje | Die-cast zinc, painted silver |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Pretok [l/min] | 4000 |
Odtok kondenzata | Semi-automatic |
DN | 25 |
Rang filtra [µm] | 5 |
Posoda | Polycarbonate container |

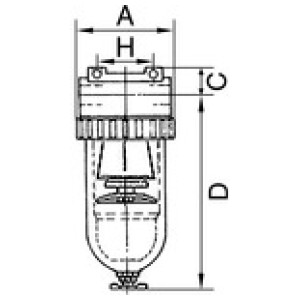

A [mm] | 90.0 |
C [mm] | 26.5 |
D [mm] | 169.9 |
H [mm] | 50.0 |
Serija | Standard |
Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
