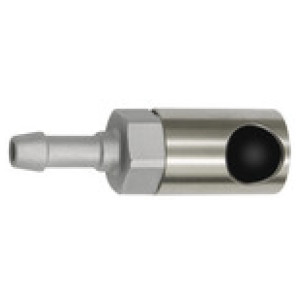

Zaščitna spojka s tipko s cevnim priklj. I.D.6,ISO6150C,Fi10
SKU: 141936RIE
EAN: 4047322566926
Pushbutton safety coupling I.D.6, ISO 6150 C, Stainless steel, Sleeve I.D.10, Operating pressure max. 12 bar, Temp. -20°C to 200°C
"High quality, robust and long-lifetime quick connect coupling in a safety design that can be operated with one hand.
When pushed for the first time the coupling is vented, the plug remains securely in the coupling.
After a second push the plug is released.
This prevents a potential ""whiplash effect"" and the risk of operating personnel is practically excluded.
The safety version meets ISO standard DIN EN ISO 4414.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining, offshore.
"| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 141934RIE | I.D. 6 | Čas dobave: Predvidoma 3 - 5 dni | 43,49 € |  | |
| 141937RIE | I.D. 13 | Čas dobave: Predvidoma 3 - 5 dni | 43,49 € | | |
| 141935RIE | I.D. 8 | Čas dobave: Predvidoma 3 - 5 dni | 26,28 € | | |
| 141936RIE | I.D. 10 | Čas dobave: Predvidoma 3 - 5 dni | 26,28 € | |
Opis
Pushbutton safety coupling I.D.6, ISO 6150 C, Stainless steel, Sleeve I.D.10, Operating pressure max. 12 bar, Temp. -20°C to 200°C
"High quality, robust and long-lifetime quick connect coupling in a safety design that can be operated with one hand.
When pushed for the first time the coupling is vented, the plug remains securely in the coupling.
After a second push the plug is released.
This prevents a potential ""whiplash effect"" and the risk of operating personnel is practically excluded.
The safety version meets ISO standard DIN EN ISO 4414.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining, offshore.
"Tehnični podatki in specifikacije
| DN | 6 |
| Max. obratovalni tlak [bar] | 12 |
| Povezava | I.D. 10 |
| a/f [mm] | 20 |
| Merjenje pretoka | at 6 bar and Δp = 1 bar |
| Vtični profil | acc. ISO 6150 C |
| Ohišje | Stainless steel |
| Tesnilo | FKM |
| Pretok | 1150 l/min (air) |
| Navojni kos | Galvanised steel |
| Ventil | Brass |
| Gumb | Stainless steel |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 200 |
| Vzmet | Stainless steel |
| Dolžina [mm] | 71.0 |
