* slike so simbolične

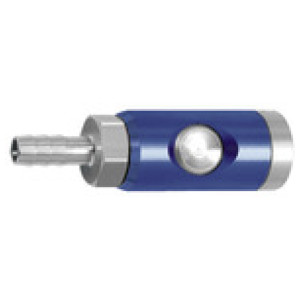

Zašč. nav. spojka s tipko z cevnim priklj. I.D. 7.4 vrteče ,Fi 8
SKU: 107572RIE
EAN: 4047322373050
Pushbutton safety coupling I.D. 7.4, rotating, Aluminium, Sleeve I.D. 8, Operating pressure max. 12 bar, Temp. -20 °C to 70 °C
"High-quality, robust and durable, one-hand quick disconnect safety couplings.
When it is pressed for the first time, air is relieved from the coupling but the plug in the coupling remains locked. The plug is only disconnected when the pushbutton is pressed for the second time.
The dreaded ""whiplash effect"" is avoided and the risk of injury to the operator virtually eliminated.
The safety version conforms to ISO-Standard DIN EN ISO 4414.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Only use hardened and galvanized steel plug-in connector and nipples.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, workshops, automotive.
"Povpraševanje
Merjenje pretoka: at 6 bar and Δp = 1 bar
Navojni kos: Nickel-plated brass
Notranji deli: Stainless steel 1.4404
Ohišje: Anodised aluminium
Povezava: I.D. 8
Ventil: Hardened, galvanised steel
Pretok: 1600 l/min (air)
| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 107572RIE | I.D. 8 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 107575RIE | I.D. 13 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 107571RIE | I.D. 6 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 107574RIE | I.D. 10 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 107573RIE | I.D. 9 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Pushbutton safety coupling I.D. 7.4, rotating, Aluminium, Sleeve I.D. 8, Operating pressure max. 12 bar, Temp. -20 °C to 70 °C
"High-quality, robust and durable, one-hand quick disconnect safety couplings.
When it is pressed for the first time, air is relieved from the coupling but the plug in the coupling remains locked. The plug is only disconnected when the pushbutton is pressed for the second time.
The dreaded ""whiplash effect"" is avoided and the risk of injury to the operator virtually eliminated.
The safety version conforms to ISO-Standard DIN EN ISO 4414.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Only use hardened and galvanized steel plug-in connector and nipples.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, workshops, automotive.
"Tehnični podatki in specifikacije
| DN | 7.4 |
| Max. obratovalni tlak [bar] | 12 |
| Povezava | I.D. 8 |
| a/f [mm] | 21 |
| Merjenje pretoka | at 6 bar and Δp = 1 bar |
| Ohišje | Anodised aluminium |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 70 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 70 |
| Pretok | 1600 l/min (air) |
| Notranji deli | Stainless steel 1.4404 |
| Navojni kos | Nickel-plated brass |
| Ventil | Hardened, galvanised steel |
| Gumb | Hardened, galvanised steel |
| Dolžina [mm] | 88.5 |
