* slike so simbolične

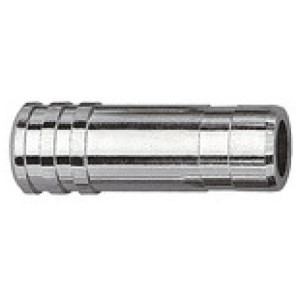

Zaporna svečke »Click-klak«, vtični nastavek 8 mm
SKU: 108794RIE
EAN: 4047322210539
Locking plug »click-clock«, Plug nipple 8, Working pressure -0.99 to 16 bar, Operating temp. -20 °C to 80 °C, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Only recommended for use in combination with quick-connect fittings of the "click-clock" series.
The suitability test for use with other series is the responsibility of the user.
| Šifra | Priključek [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 108795RIE | 10 | 36.8 | Čas dobave: Predvidoma 3 - 5 dni | 2,27 € |  | |
| 108790RIE | 3 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,27 € | | |
| 108793RIE | 6 | 29.8 | Čas dobave: Predvidoma 3 - 5 dni | 2,00 € | | |
| 108797RIE | 14 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,84 € | | |
| 108794RIE | 8 | 33.6 | Čas dobave: Predvidoma 3 - 5 dni | 2,71 € | | |
| 108792RIE | 5 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,52 € | | |
| 108796RIE | 12 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,50 € | | |
| 108791RIE | 4 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,63 € | |
Opis
Locking plug »click-clock«, Plug nipple 8, Working pressure -0.99 to 16 bar, Operating temp. -20 °C to 80 °C, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Only recommended for use in combination with quick-connect fittings of the "click-clock" series.
The suitability test for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |

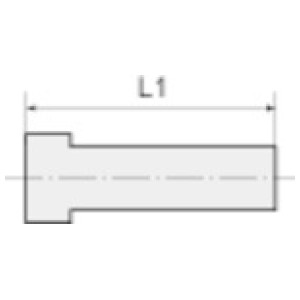

| L1 [mm] | 33.6 |
| Priključek [mm] | 8 |
| Material | Nickel-plated brass |
