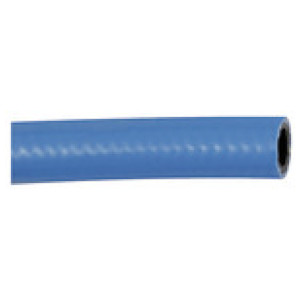

Workshop cev, mehka PVC cev Ø 33.5x25, dolžina valja 50 m
SKU: 113840RIE
EAN: 4047322402835
Workshop hose, Soft PVC, Temperature range -20 °C to 60 °C, Hose Ø 33.5x25, PN at 23 °C max. 15 bar, Roller length 50 m
Highly flexible hose for compressed air applications in workshop areas (compressed air feed for pneumatic tools, equipping assembly stations, etc.).
Thanks to the even fabric reinforcement, this hose combines high pressure resistance, very good handling and high mechanical strength with excellent bond adhesion.
The high level of ozone resistance further enhances the hose's durability and reliability.
Obrestno financiranje
- 20,42 € x 48 mesecev
- 26,10 € x 36 mesecev
- 37,49 € x 24 mesecev
- 71,77 € x 12 mesecev
- 140,40 € x 6 mesecev
- 277,68 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | I.D. cevi [mm] | O.D. cevi [mm] | Min. polmer upogibanja [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 113833RIE | 6.3 | 11 | 45 | Čas dobave: Predvidoma 3 - 5 dni | 172,02 € |  | |
| 113835RIE | 9 | 14.5 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 193,98 € | | |
| 113837RIE | 12.7 | 19 | 89 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | | |
| 113836RIE | 10 | 15.5 | 70 | Čas dobave: Predvidoma 3 - 5 dni | 222,04 € | | |
| 113839RIE | 19 | 26.5 | 72.5 | Čas dobave: Predvidoma 3 - 5 dni | 486,78 € | | |
| 113834RIE | 8 | 13 | 56 | Čas dobave: Predvidoma 3 - 5 dni | 190,93 € | | |
| 113838RIE | 16 | 23 | 112 | Čas dobave: Predvidoma 3 - 5 dni | 403,21 € | | |
| 113840RIE | 25 | 33.5 | 105 | Čas dobave: Predvidoma 3 - 5 dni | 767,38 € | |
Opis
Workshop hose, Soft PVC, Temperature range -20 °C to 60 °C, Hose Ø 33.5x25, PN at 23 °C max. 15 bar, Roller length 50 m
Highly flexible hose for compressed air applications in workshop areas (compressed air feed for pneumatic tools, equipping assembly stations, etc.).
Thanks to the even fabric reinforcement, this hose combines high pressure resistance, very good handling and high mechanical strength with excellent bond adhesion.
The high level of ozone resistance further enhances the hose's durability and reliability.
Tehnični podatki in specifikacije
| Max. delovni tlak pri 23 ° C [bar] | 15 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 60 |
| Zunanji pokrov | Soft PVC, blue |
| Zračnico | Soft PVC, black |
| Pletenica | High-strength polyester fabric |
| I.D. cevi [mm] | 25 |
| O.D. cevi [mm] | 33.5 |
| Min. polmer upogibanja [mm] | 105 |
| Dolžina koluta [m] | 50 |
