vžigalne erozija zaščiten PU cevi, cevi Ø 6x4, rola 25 m
SKU: 113879RIE
EAN: 4047322031943
Spark erosion protected PU hose, Temperature range -40 °C to 70 °C, Hose Ø 6x4, Working pressure 5 - 12 bar, Roll of 25 m

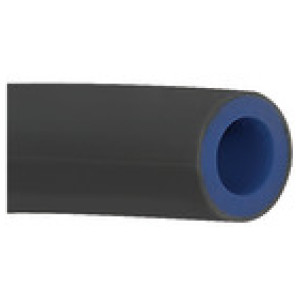

Blue polyurethane hose with an outer sheath made of black synthetic resin material.
This sheath protects the inner PU tube from welding sparks.
The sheath is not attached to the inner tube and can therefore be easily removed to enable conventional fittings to be installed.
- Protects against welding sparks
- Extremely flexible and non-kinking
- Resistant to a large number of chemicals, oils, greases, acids, bases, heat, ageing, UV light
Obrestno financiranje
- 15,81 € x 12 mesecev
- 30,94 € x 6 mesecev
- 61,19 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | I.D. cevi [mm] | O.D. cevi [mm] | Min. polmer upogibanja [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 113880RIE | 5 | 8 | 19 | Čas dobave: Predvidoma 3 - 5 dni | 194,59 € |  | |
| 113879RIE | 4 | 6 | 12.7 | Čas dobave: Predvidoma 3 - 5 dni | 168,66 € | | |
| 113881RIE | 8 | 12 | 28.6 | Čas dobave: Predvidoma 3 - 5 dni | 344,65 € | |
Opis
Spark erosion protected PU hose, Temperature range -40 °C to 70 °C, Hose Ø 6x4, Working pressure 5 - 12 bar, Roll of 25 m
Blue polyurethane hose with an outer sheath made of black synthetic resin material.
This sheath protects the inner PU tube from welding sparks.
The sheath is not attached to the inner tube and can therefore be easily removed to enable conventional fittings to be installed.
- Protects against welding sparks
- Extremely flexible and non-kinking
- Resistant to a large number of chemicals, oils, greases, acids, bases, heat, ageing, UV light
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -40 |
| Min. delovni tlak [bar] | 5 |
| Max. delovni tlak [bar] | 12 |
| Max. temperaturno območje [°C] | 70 |
| I.D. cevi [mm] | 4 |
| O.D. cevi [mm] | 6 |
| Min. polmer upogibanja [mm] | 12.7 |
| Dolžina koluta [m] | 25 |
| Barva | black |
