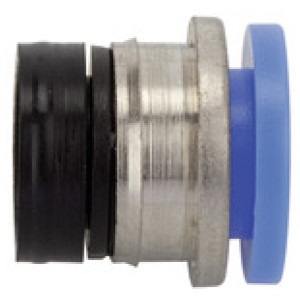

Vtični vložku »blue serija«, za cev zunanji Ø 12 mm
SKU: 109946RIE
EAN: 4047322264891
Push-in cartridge »Blue Series«, can only be pressed in plastic, for hose exterior Ø 12 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Only recommended for use in combination with quick connectors of the »Blue Series«. Suitability testing for use with other series is the responsibility of the user.

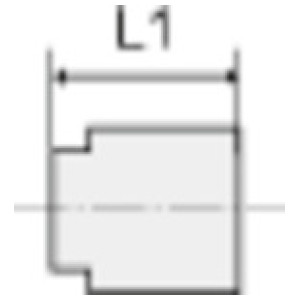

Šifra | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|
109942RIE | 4 | 11.3 | Čas dobave: Predvidoma 3 - 5 dni | 0,78 € | | |
109943RIE | 6 | 11.9 | Čas dobave: Predvidoma 3 - 5 dni | 1,26 € | | |
109944RIE | 8 | 13.7 | Čas dobave: Predvidoma 3 - 5 dni | 1,44 € | | |
109946RIE | 12 | 17.6 | Čas dobave: Predvidoma 3 - 5 dni | 2,21 € | | |
109945RIE | 10 | 15.2 | Čas dobave: Predvidoma 3 - 5 dni | 1,85 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Only recommended for use in combination with quick connectors of the »Blue Series«. Suitability testing for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 80 |
Min. temperaturno območje [°C] | -20 |
Tesnilo | NBR |
Srednje | Compressed air, neutral and safe gases and liquids |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Za cevi O.D. [mm] | 12 |
L1 [mm] | 17.6 |
Material | Plastic and zinc |
