Vtični T-priključek Za cev zunanji Ø 8, legirano jeklo
SKU: 135271RIE
EAN: 4047322494779

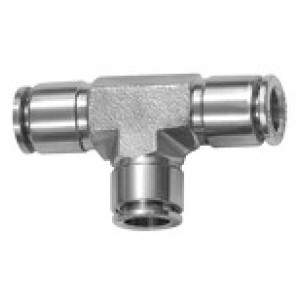

Push-in T-connector, for hose exterior Ø 8 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Čas dobave: Predvidoma 3 - 5 dni
58,95 €
ali od 10,80 € / mesec
Izračunaj obrok
Obrestno financiranje
- 10,80 € x 6 mesecev
- 21,36 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

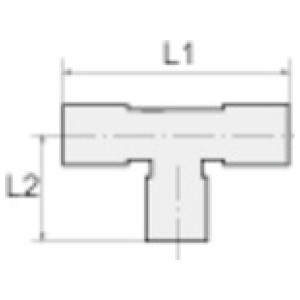

| Šifra | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 135271RIE | 8 | 14 | 23.2 | 46.4 | Čas dobave: Predvidoma 3 - 5 dni | 58,95 € |  | |
| 135272RIE | 10 | 16 | 24.3 | 48.6 | Čas dobave: Predvidoma 3 - 5 dni | 81,29 € | | |
| 135275RIE | 16 | 24 | 30.0 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 212,83 € | | |
| 135270RIE | 6 | 12 | 22.0 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 48,35 € | | |
| 135274RIE | 14 | 22 | 28.7 | 57.4 | Čas dobave: Predvidoma 3 - 5 dni | 176,20 € | | |
| 135273RIE | 12 | 19 | 26.7 | 53.4 | Čas dobave: Predvidoma 3 - 5 dni | 113,70 € | | |
| 135269RIE | 4 | 10 | 20.3 | 40.6 | Čas dobave: Predvidoma 3 - 5 dni | 46,25 € | |
Opis
Push-in T-connector, for hose exterior Ø 8 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404
For use in more aggressive environments and corrosive media.
The suitability test for the individual application is the user's responsibility.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 20 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 46.4 |
| L2 [mm] | 23.2 |
| a/f [mm] | 14 |
| Material | Stainless steel 1.4404 |
