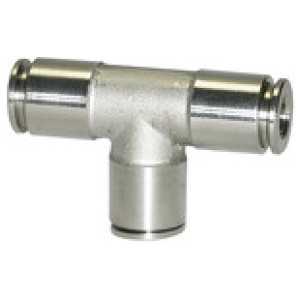

Vtični T-priključek za cev zunanja Ø 6 mm
SKU: 110437RIE
EAN: 4047322093507
Push-in T-connector, for hose exterior Ø 6 mm, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Vtični T-priključek za cev zunanja Ø 6 mm
Material: Stainless steel 1.4404
Primerni materiali za cevi: PVDF, PTFE, PA, PU
Primerni materiali za cevi: PVDF, PTFE, PA, PU

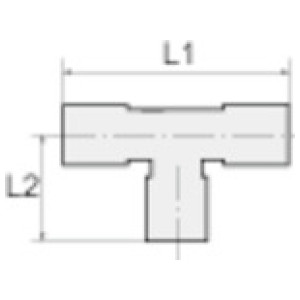

| Šifra | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 110440RIE | 12 | 27.0 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | 140,32 € |  | |
| 110438RIE | 8 | 21.0 | 43.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 110439RIE | 10 | 25.0 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 94,71 € | | |
| 110437RIE | 6 | 20.0 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 110436RIE | 4 | 17.0 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | 52,40 € | |
Opis
Push-in T-connector, for hose exterior Ø 6 mm, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 15 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Delovni tlak pulzira [bar] | 10 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 42.0 |
| L2 [mm] | 20.0 |
| Material | Stainless steel 1.4404 |
