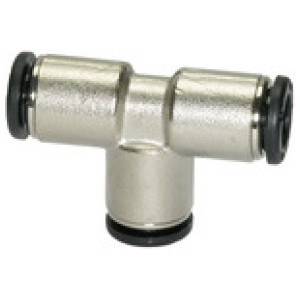

Vtični T-priključek »Click-klak« za cev zunanja Ø 5 mm
SKU: 108762RIE
EAN: 4047322292030
Push-in T-connector »click-clock« for hose exterior Ø 5, Working pressure -0.99 to 16 bar, Operating temperature -20 °C to 80 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
5,23 €
| Šifra | Rokav | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 108764RIE | Hostaform | 8 | 21.3 | 42.6 | Čas dobave: Predvidoma 3 - 5 dni | 6,01 € |  | |
| 108762RIE | Hostaform | 5 | 19.2 | 38.4 | Čas dobave: Predvidoma 3 - 5 dni | 5,23 € | | |
| 108763RIE | Hostaform | 6 | 19.0 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,59 € | | |
| 108760RIE | Nickel-plated brass | 3 | 10.4 | 21.2 | Čas dobave: Predvidoma 3 - 5 dni | 6,28 € | | |
| 108761RIE | Hostaform | 4 | 16.7 | 33.4 | Čas dobave: Predvidoma 3 - 5 dni | 5,09 € | | |
| 108766RIE | Hostaform | 12 | 26.0 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,18 € | | |
| 108767RIE | Hostaform | 14 | 29.3 | 58.6 | Čas dobave: Predvidoma 3 - 5 dni | 12,55 € | | |
| 108765RIE | Hostaform | 10 | 23.3 | 46.6 | Čas dobave: Predvidoma 3 - 5 dni | 8,61 € | |
Opis
Push-in T-connector »click-clock« for hose exterior Ø 5, Working pressure -0.99 to 16 bar, Operating temperature -20 °C to 80 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Za cevi O.D. [mm] | 5 |
| L1 [mm] | 38.4 |
| L2 [mm] | 19.2 |
| Material | Nickel-plated brass |
