* slike so simbolične

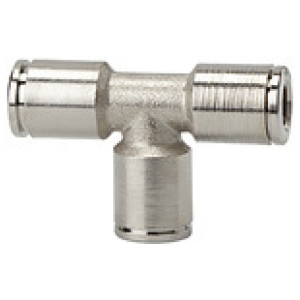

Vtični T-konektorja »Metallica«, za cev zunanja Ø 4 mm
SKU: 108988RIE
EAN: 4047322279154
Push-in T-connector »metallica«, for hose exterior Ø 4, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 150 °C
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Zaloga po poslovalnicah
- Ljubljana Na zalogi
- Maribor Na zalogi

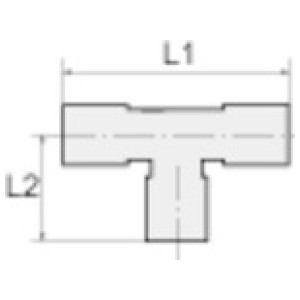

Šifra | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
108991RIE | 10 | 25.0 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,55 € | | |
108990RIE | 8 | 23.0 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,75 € | | |
108988RIE | 4 | 17.0 | 34.0 | Na zalogi | 5,94 € | | |
108992RIE | 12 | 27.0 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,63 € | | |
136782RIE | 16 | 36.0 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 59,17 € | | |
108989RIE | 6 | 19.5 | 39.0 | Na zalogi | 6,26 € | | |
108993RIE | 14 | 31.0 | 62.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,32 € | |
Opis
Push-in T-connector »metallica«, for hose exterior Ø 4, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 150 °C
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
Serija | metallica |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Priporočena cev | PA and PU |
Rokav | Nickel-plated brass |
Vpenjalni obroč | Union tees |
Za cevi O.D. [mm] | 4 |
L1 [mm] | 34.0 |
L2 [mm] | 17.0 |
Material | Nickel-plated brass |
