* slike so simbolične
Vtični L nast.-prik. blue serija, zun. Ø 16 mm
SKU: 109820RIE
EAN: 4047322330428

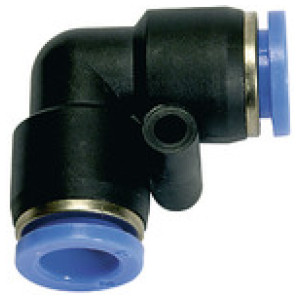

Push-in L-connector »Blue Series«, for hose exterior Ø 16 mm, pmax short term 15bar, Plastic / nickel-plated brassPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
7,30 €

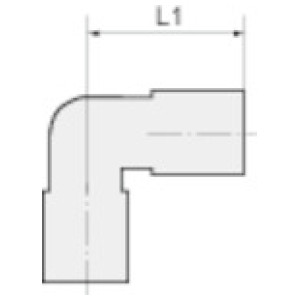

| Šifra | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 109815RIE | 6 | 18.7 | Čas dobave: Predvidoma 3 - 5 dni | 3,54 € |  | |
| 109817RIE | 10 | 27.2 | Na zalogi | 5,10 € | | |
| 109816RIE | 8 | 22.4 | Čas dobave: Predvidoma 3 - 5 dni | 3,77 € | | |
| 109819RIE | 14 | 29.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,83 € | | |
| 109814RIE | 4 | 17.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,23 € | | |
| 109818RIE | 12 | 28.9 | Čas dobave: Predvidoma 3 - 5 dni | 6,38 € | | |
| 109820RIE | 16 | 30.8 | Čas dobave: Predvidoma 3 - 5 dni | 7,30 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Za cevi O.D. [mm] | 16 |
| L1 [mm] | 30.8 |
| Material | Plastic and nickel-plated brass |
