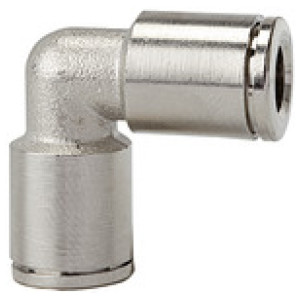

Vtični L nast.-konekt. Metallica, zun. Ø 10 mm
SKU: 108985RIE
EAN: 4047322279147
Push-in L-connector »metallica«, for hose exterior Ø 10, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 150 °C
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Šifra | Za cevi O.D. [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
108986RIE | 12 | 27.5 | 27.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,78 € | | |
108985RIE | 10 | 25.0 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,97 € | | |
136781RIE | 16 | 33.0 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 45,88 € | | |
108983RIE | 6 | 20.0 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,75 € | | |
108982RIE | 4 | 17.5 | 17.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,31 € | | |
108987RIE | 14 | 31.0 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,61 € | | |
108984RIE | 8 | 23.0 | 23.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,47 € | |
Opis
Push-in L-connector »metallica«, for hose exterior Ø 10, Working pressure -0.98 to 16 bar, Operating temperature -20 °C to 150 °C
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
Serija | metallica |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Priporočena cev | PA and PU |
Rokav | Nickel-plated brass |
Vpenjalni obroč | Union elbows |
Za cevi O.D. [mm] | 10 |
L1 [mm] | 25.0 |
L2 [mm] | 25.0 |
Material | Nickel-plated brass |
