* slike so simbolične

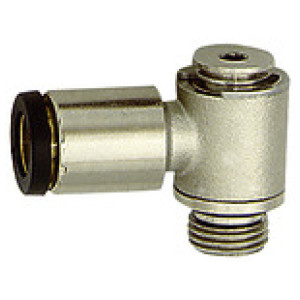

Vtični-L fiting Click-klak vrt., M5 , Cev zunanja Ø 5
SKU: 108633RIE
EAN: 4047322292214
Push-in L-fitting »click-clock«, rotating, M5 o., for hose exterior Ø 5 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
6,31 €

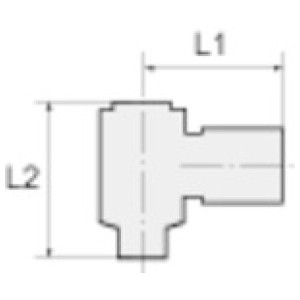

| Šifra | Navoj | Rokav | a/f [mm] | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 108633RIE | M5 | Hostaform | 2 | 5 | 19.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,31 € |  | |
| 108630RIE | M3 | Nickel-plated brass | 1.5 | 3 | 13.2 | 12.2 | Čas dobave: Predvidoma 3 - 5 dni | 5,73 € | | |
| 108647RIE | G 3/8 | Hostaform | 5 | 12 | 35.6 | 35.3 | Čas dobave: Predvidoma 3 - 5 dni | 14,91 € | | |
| 108636RIE | M7 | Hostaform | 3 | 6 | 18.5 | 23.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,88 € | | |
| 108645RIE | G 3/8 | Hostaform | 5 | 8 | 35.6 | 28.5 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | | |
| 108641RIE | G 1/4 | Hostaform | 4 | 6 | 29.4 | 24.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,70 € | | |
| 108638RIE | G 1/8 | Hostaform | 3 | 5 | 26.2 | 24.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,48 € | | |
| 108634RIE | M5 | Hostaform | 2 | 6 | 18.4 | 23.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,28 € | | |
| 108637RIE | G 1/8 | Hostaform | 3 | 4 | 24.9 | 21.3 | Čas dobave: Predvidoma 3 - 5 dni | 6,50 € | | |
| 108632RIE | M5 | Hostaform | 2 | 4 | 18.4 | 20.2 | Čas dobave: Predvidoma 3 - 5 dni | 5,73 € | | |
| 108646RIE | G 3/8 | Hostaform | 5 | 10 | 35.6 | 32.8 | Čas dobave: Predvidoma 3 - 5 dni | 13,59 € | | |
| 108635RIE | M7 | Hostaform | 3 | 4 | 18.5 | 20.2 | Čas dobave: Predvidoma 3 - 5 dni | 6,88 € | | |
| 108639RIE | G 1/8 | Hostaform | 3 | 6 | 24.9 | 23.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,50 € | | |
| 108631RIE | M5 | Nickel-plated brass | 2 | 3 | 13.7 | 12.7 | Čas dobave: Predvidoma 3 - 5 dni | 5,73 € | | |
| 108644RIE | G 1/4 | Hostaform | 4 | 12 | 29.4 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,46 € | | |
| 108642RIE | G 1/4 | Hostaform | 4 | 8 | 29.4 | 26.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,75 € | | |
| 108643RIE | G 1/4 | Hostaform | 4 | 10 | 29.4 | 31.4 | Čas dobave: Predvidoma 3 - 5 dni | 8,86 € | | |
| 108640RIE | G 1/8 | Hostaform | 3 | 8 | 24.9 | 24.8 | Čas dobave: Predvidoma 3 - 5 dni | 7,14 € | | |
| 108648RIE | G 1/2 | Hostaform | 8 | 12 | 40.8 | 37.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,85 € | |
Opis
Push-in L-fitting »click-clock«, rotating, M5 o., for hose exterior Ø 5 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | M5 |
| Za cevi O.D. [mm] | 5 |
| L1 [mm] | 24.0 |
| L2 [mm] | 19.0 |
| a/f [mm] | 2 |
| Material | Nickel-plated brass |
