* slike so simbolične

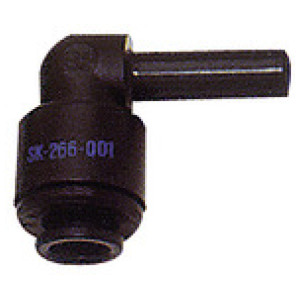

vtični konektor kotni POM, podpira 8 mm, cev zunanja Ø 8
SKU: 110342RIE
EAN: 4047322118439
Plug-in angle connector POM, Supports 8 mm, for hose exterior Ø 8 mm, working pressure -0.95 to 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.

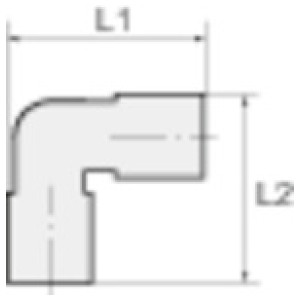

| Šifra | Max. delovni tlak [bar] | Šoba [mm] | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 110344RIE | 10 | 12 | 12 | 39.0 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,33 € |  | |
| 110346RIE | 10 | 18 | 18 | 41.0 | 56.5 | Čas dobave: Predvidoma 3 - 5 dni | 9,98 € | | |
| 110340RIE | 16 | 5 | 5 | 22.0 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,10 € | | |
| 110345RIE | 10 | 15 | 15 | 42.2 | 52.1 | Čas dobave: Predvidoma 3 - 5 dni | 10,22 € | | |
| 110339RIE | 16 | 4 | 4 | 22.0 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,03 € | | |
| 110341RIE | 16 | 6 | 6 | 25.0 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,10 € | | |
| 110343RIE | 10 | 10 | 10 | 32.0 | 35.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,34 € | | |
| 136479RIE | 10 | 22 | 22 | 67.0 | 58.7 | Čas dobave: Predvidoma 3 - 5 dni | 12,41 € | | |
| 110342RIE | 16 | 8 | 8 | 27.0 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,73 € | |
Opis
Plug-in angle connector POM, Supports 8 mm, for hose exterior Ø 8 mm, working pressure -0.95 to 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura v zraku [°C] | -20 |
| Max. delovna temperatura v zraku [°C] | 65 |
| Min. delovna temperatura v vodi [°C] | 1 |
| Max. delovna temperatura v vodi [°C] | 70 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 32.0 |
| L2 [mm] | 27.0 |
| Šoba [mm] | 8 |
| Material | Acetal polymer (POM) |
