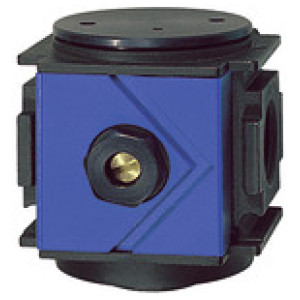

Vklopni ventil »variobloc«, Velikost 2, G 1
SKU: 100745RIE
EAN: 4047322212625
Start up valve »variobloc«, Size 2, G 1, Operating pressure 2 - 25 bar
For slow pressure build-up in pneumatic systems, e.g. after an emergency stop.
The valve opens to full flow at approximately 60% of the set operating pressure.
The filling time can be set by turning the adjusting screw. Used in combination with multi-piece service units.
Obrestno financiranje
- 15,35 € x 12 mesecev
- 30,02 € x 6 mesecev
- 59,37 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Velikost | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 100744RIE | G 3/4 | 2 | 70.0 | 72.0 | 4200 | Čas dobave: Predvidoma 3 - 5 dni | 107,10 € |  | |
| 100742RIE | G 3/8 | 1 | 48.0 | 54.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 83,56 € | | |
| 100741RIE | G 1/4 | 1 | 48.0 | 54.0 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 100743RIE | G 1/2 | 2 | 70.0 | 72.0 | 3800 | Čas dobave: Predvidoma 3 - 5 dni | 107,10 € | | |
| 100745RIE | G 1 | 2 | 124.0 | 72.0 | 4200 | Čas dobave: Predvidoma 3 - 5 dni | 163,77 € | |
Opis
Start up valve »variobloc«, Size 2, G 1, Operating pressure 2 - 25 bar
For slow pressure build-up in pneumatic systems, e.g. after an emergency stop.
The valve opens to full flow at approximately 60% of the set operating pressure.
The filling time can be set by turning the adjusting screw. Used in combination with multi-piece service units.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Min. obratovalni tlak [bar] | 2 |
| Max. obratovalni tlak [bar] | 25 |
| Velikost | 2 |
| Pretok [l/min] | 4200 |
| A [mm] | 124.0 |
| B [mm] | 72.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
