* slike so simbolične

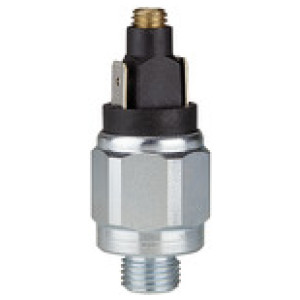

Tlačno stikalo standardno, galvanizirano jeklo, 1 - 10 bar
SKU: 102997RIE
EAN: 4047322126182
Pressure switch standard design, galvanised steel, Ambient temp. -25 °C to 85 °C, G 1/4, Setting range 1 - 10 bar, NO contact
For liquid, non-corrosive and gaseous media. Easy to adjust, even under pressure.
Can be integrated in any mounting position. Pressure adjustment by means of a hexagon-head screw.
Čas dobave: Predvidoma 3 - 5 dni
26,57 €
| Šifra | Ffunkcija | Navoj | Vrsta gradnje | Min. prilagoditveno območje [bar] | Max. območje nastavitve [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 102998RIE | NO | G 1/4 | Spring-loaded piston | 10 | 70 | Čas dobave: Predvidoma 3 - 5 dni | 31,60 € |  | |
| 103001RIE | NC | G 1/8 | Spring-loaded piston | 10 | 70 | Čas dobave: Predvidoma 3 - 5 dni | 31,60 € | | |
| 103000RIE | NC | G 1/8 | Spring-loaded diaphragm (NBR) | 1 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 26,57 € | | |
| 102995RIE | NO | G 1/8 | Spring-loaded piston | 10 | 70 | Čas dobave: Predvidoma 3 - 5 dni | 31,60 € | | |
| 102999RIE | NC | G 1/8 | Spring-loaded diaphragm (NBR) | 0.5 | 2 | Čas dobave: Predvidoma 3 - 5 dni | 26,57 € | | |
| 102997RIE | NO | G 1/4 | Spring-loaded diaphragm (NBR) | 1 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 26,57 € | | |
| 103004RIE | NC | G 1/4 | Spring-loaded piston | 10 | 70 | Čas dobave: Predvidoma 3 - 5 dni | 31,60 € | | |
| 103002RIE | NC | G 1/4 | Spring-loaded diaphragm (NBR) | 0.5 | 2 | Čas dobave: Predvidoma 3 - 5 dni | 26,57 € | | |
| 102996RIE | NO | G 1/4 | Spring-loaded diaphragm (NBR) | 0.5 | 2 | Čas dobave: Predvidoma 3 - 5 dni | 26,57 € | | |
| 103003RIE | NC | G 1/4 | Spring-loaded diaphragm (NBR) | 1 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 26,57 € | | |
| 102993RIE | NO | G 1/8 | Spring-loaded diaphragm (NBR) | 0.5 | 2 | Čas dobave: Predvidoma 3 - 5 dni | 26,57 € | | |
| 102994RIE | NO | G 1/8 | Spring-loaded diaphragm (NBR) | 1 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 26,57 € | |
Opis
Pressure switch standard design, galvanised steel, Ambient temp. -25 °C to 85 °C, G 1/4, Setting range 1 - 10 bar, NO contact
For liquid, non-corrosive and gaseous media. Easy to adjust, even under pressure.
Can be integrated in any mounting position. Pressure adjustment by means of a hexagon-head screw.
Tehnični podatki in specifikacije
| Preklopna napetost | 42 V |
| Min. prilagoditveno območje [bar] | 1 |
| Max. območje nastavitve [bar] | 10 |
| Aplikacije | Air, hydraulic oil, oil emulsions, water |
| Preklopna frekvenca | 200/min |
| Material | Galvanised steel |
| Navoj | G 1/4 |
| Ffunkcija | NO |
| Vrsta gradnje | Spring-loaded diaphragm (NBR) |
| Max. sobna temperatura [°C] | 85 |
| Min. sobna temperatura [°C] | -25 |
| Električni priključek | Tab connectors 2 x 6.3 x 0.8 |
