Tlačni reg. s pnevmatskim dalj. upravljanjem »Stinard«G 1
SKU: 101254RIE
EAN: 4047322278485

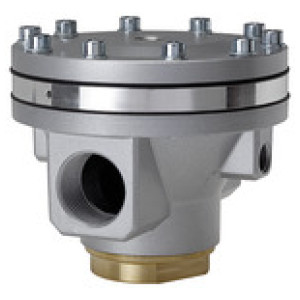

Pressure regulator pneumatic remote controlled »Standard«, without pressure gauge, G 1, Input pressure max. 40 bar, max. 80 °C
Diaphragm pressure regulators, self-relieving, with pneumatic remote control.
The full functionality is assured in combination with a pilot regulator.
We recommend using one of our precision or standard pressure regulators with a G 1/4 port as the pilot regulator.
The output pressure corresponds to the set pressure of the pilot pressure regulator.
To design a closed control loop similar to the sketch below please use our precision pilot regulator (feedback).
Obrestno financiranje
- 12,95 € x 24 mesecev
- 24,80 € x 12 mesecev
- 48,51 € x 6 mesecev
- 95,94 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

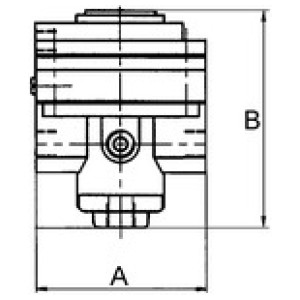

| Šifra | Navoj | Ohišje | Max. vhodni tlak [bar] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 101257RIE | G 2 | Aluminium | 25 | 160.0 | 198.0 | 50000 | Čas dobave: Predvidoma 3 - 5 dni | 893,65 € |  | |
| 101253RIE | G 3/4 | Aluminium | 40 | 125.0 | 109.0 | 15000 | Čas dobave: Predvidoma 3 - 5 dni | 277,94 € | | |
| 101256RIE | G 1 1/2 | Aluminium | 40 | 125.0 | 123.0 | 31500 | Čas dobave: Predvidoma 3 - 5 dni | 408,92 € | | |
| 101252RIE | G 1/2 | Die-cast zinc | 25 | 82.0 | 74.0 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 173,14 € | | |
| 101255RIE | G 1 1/4 | Aluminium | 40 | 125.0 | 123.0 | 31500 | Čas dobave: Predvidoma 3 - 5 dni | 446,67 € | | |
| 101254RIE | G 1 | Aluminium | 40 | 125.0 | 109.0 | 15000 | Čas dobave: Predvidoma 3 - 5 dni | 265,02 € | |
Opis
Pressure regulator pneumatic remote controlled »Standard«, without pressure gauge, G 1, Input pressure max. 40 bar, max. 80 °C
Diaphragm pressure regulators, self-relieving, with pneumatic remote control.
The full functionality is assured in combination with a pilot regulator.
We recommend using one of our precision or standard pressure regulators with a G 1/4 port as the pilot regulator.
The output pressure corresponds to the set pressure of the pilot pressure regulator.
To design a closed control loop similar to the sketch below please use our precision pilot regulator (feedback).
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 40 |
| Max. delovna temperatura [°C] | 80 |
| Ohišje | Aluminium |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 80 |
| Pretok [l/min] | 15000 |
| A [mm] | 125.0 |
| B [mm] | 109.0 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
| Navoj za pnevmatsko daljinsko upravljanje | G 1/4 |
