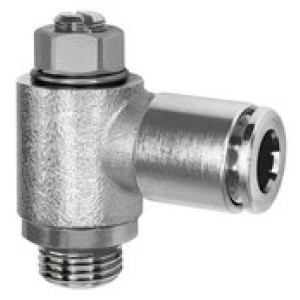

Throttle check valve, discharge, M5, plug-in connector 4
SKU: 115702RIE
EAN: 4047322716215
Throttle check valve, discharge (C), slotted-head screwdriver, M5, plug-in4,rotating,0 to 10 bar,-20°C to 80°C,nickel-plated brass
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.
Povpraševanje

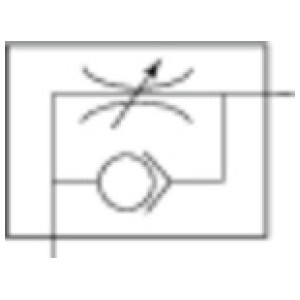

Ffunkcija: Discharge throttle (C)
Telo: Nickel-plated brass
Vrsta povezave: Plug-in connector

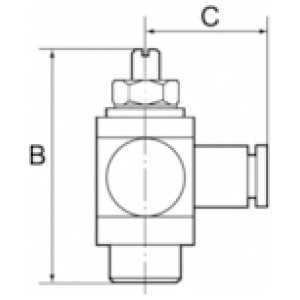

| Šifra | Navoj | a/f [mm] | Za cevi [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 115703RIE | M5 | 6 | 6 | 21.5 | 25.5 | Ni na zalogi | ? | Povpraševanje |  |
| 115706RIE | G 1/8 | 9 | 8 | 23.5 | 31.8 | Ni na zalogi | ? | Povpraševanje | |
| 116500RIE | G 3/8 | 14 | 8 | 26.5 | 50.0 | Ni na zalogi | ? | Povpraševanje | |
| 115705RIE | G 1/8 | 9 | 6 | 22.5 | 31.8 | Ni na zalogi | ? | Povpraševanje | |
| 115809RIE | G 1/4 | 10 | 6 | 24.0 | 39.5 | Ni na zalogi | ? | Povpraševanje | |
| 115704RIE | G 1/8 | 9 | 4 | 20.5 | 31.8 | Ni na zalogi | ? | Povpraševanje | |
| 116502RIE | G 3/8 | 14 | 10 | 29.0 | 50.0 | Ni na zalogi | ? | Povpraševanje | |
| 116339RIE | G 1/4 | 10 | 10 | 27.0 | 39.5 | Ni na zalogi | ? | Povpraševanje | |
| 116338RIE | G 1/4 | 10 | 8 | 24.5 | 39.5 | Ni na zalogi | ? | Povpraševanje | |
| 115702RIE | M5 | 6 | 4 | 18.5 | 25.5 | Ni na zalogi | ? | Povpraševanje | |
Opis
Throttle check valve, discharge (C), slotted-head screwdriver, M5, plug-in4,rotating,0 to 10 bar,-20°C to 80°C,nickel-plated brass
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Tesnilo | NBR |
| Navoj | M5 |
| Za cevi [mm] | 4 |
| B [mm] | 25.5 |
| C [mm] | 18.5 |
| a/f [mm] | 6 |
| Telo | Nickel-plated brass |
| Silicone-free | Yes |
| Ffunkcija | Discharge throttle (C) |
| Vrsta povezave | Plug-in connector |
| Design | rotating |
