* slike so simbolične

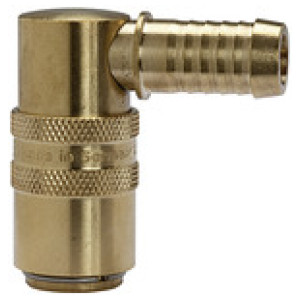

Temperaturna sklopka DN 9navoj 13 mmzaporni ventil,Fi 90°
SKU: 107955RIE
EAN: 4047322258692
Tempered coupling DN 9, Taps 13 mm, Blocking valve, Brass, Hose sleeve 90°, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Čas dobave: Predvidoma 3 - 5 dni
27,58 €
| Šifra | Tip stebelnih cevi | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 107954RIE | 45° | 50.5 | Čas dobave: Predvidoma 3 - 5 dni | 27,58 € |  | |
| 107955RIE | 90° | 50.5 | Čas dobave: Predvidoma 3 - 5 dni | 27,58 € | | |
| 107953RIE | straight | 61.5 | Čas dobave: Predvidoma 3 - 5 dni | 19,59 € | |
Opis
Tempered coupling DN 9, Taps 13 mm, Blocking valve, Brass, Hose sleeve 90°, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 15 |
| Srednje | Air, water, oil, vacuum |
| Material | Brass 2.0401 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 160 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 160 |
| Tesnilo | FPM (PTFE coated) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Tip stebelnih cevi | 90° |
| Priključek za cev [mm] | 13 |
| Dolžina [mm] | 50.5 |
