T-vez POM, za cev zunanja Ø 4 mm
SKU: 110313RIE
EAN: 4047322113281

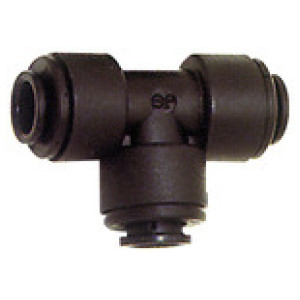

T-connection POM, for hose exterior Ø 4 mm, working pressure -0.95 to 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.

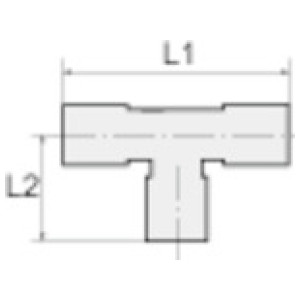

| Šifra | Za cevi O.D. [mm] | Max. delovni tlak [bar] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 110314RIE | 5 | 16 | 17.6 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,67 € |  | |
| 110319RIE | 15 | 10 | 37.3 | 74.6 | Čas dobave: Predvidoma 3 - 5 dni | 12,72 € | | |
| 110313RIE | 4 | 16 | 17.6 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,42 € | | |
| 110315RIE | 6 | 16 | 19.6 | 39.3 | Čas dobave: Predvidoma 3 - 5 dni | 4,81 € | | |
| 110322RIE | 28 | 10 | 60.7 | 121.4 | Čas dobave: Predvidoma 3 - 5 dni | 32,32 € | | |
| 110321RIE | 22 | 10 | 48.9 | 97.7 | Čas dobave: Predvidoma 3 - 5 dni | 19,23 € | | |
| 110317RIE | 10 | 10 | 25.4 | 50.7 | Čas dobave: Predvidoma 3 - 5 dni | 6,32 € | | |
| 110320RIE | 18 | 10 | 44.2 | 88.3 | Čas dobave: Predvidoma 3 - 5 dni | 18,20 € | | |
| 110316RIE | 8 | 16 | 21.0 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,03 € | | |
| 110318RIE | 12 | 10 | 32.5 | 65.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,34 € | |
Opis
T-connection POM, for hose exterior Ø 4 mm, working pressure -0.95 to 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura v zraku [°C] | -20 |
| Max. delovna temperatura v zraku [°C] | 65 |
| Min. delovna temperatura v vodi [°C] | 1 |
| Max. delovna temperatura v vodi [°C] | 70 |
| Za cevi O.D. [mm] | 4 |
| L1 [mm] | 32.5 |
| L2 [mm] | 17.6 |
| Material | Acetal polymer (POM) |
