* slike so simbolične
T več dist., 10 mm Blue serija, 3-stransko
SKU: 135802RIE
EAN: 4047322499385

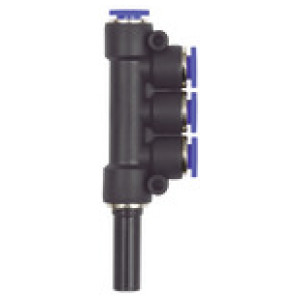

T multi-distributor, Plug nipple 10 mm »Blue Series«, 3-fold, for hose exterior Ø 4x6 mm, pmax short term 15 bar, Plastic
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Šifra | Za cevi O.D. [mm] | Priključek [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
109908RIE | 4x4 | 6 | 22.7 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,76 € | | |
109909RIE | 4x4 | 8 | 24.7 | 104.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,59 € | | |
109910RIE | 4x6 | 8 | 24.7 | 106.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,59 € | | |
135802RIE | 4x6 | 10 | 27.2 | 105.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,91 € | | |
109911RIE | 4x8 | 10 | 27.2 | 109.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,38 € | |
Opis
T multi-distributor, Plug nipple 10 mm »Blue Series«, 3-fold, for hose exterior Ø 4x6 mm, pmax short term 15 bar, Plastic
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 80 |
Min. temperaturno območje [°C] | -20 |
Tesnilo | NBR |
Srednje | Compressed air, neutral and safe gases and liquids |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Za cevi O.D. [mm] | 4x6 |
L1 [mm] | 105.5 |
L2 [mm] | 27.2 |
Priključek [mm] | 10 |
Material | Plastic and nickel-plated brass |
