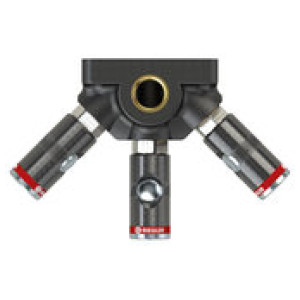

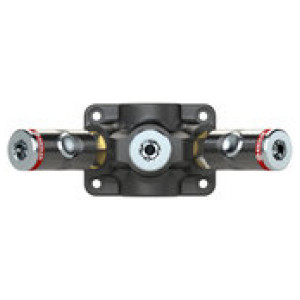

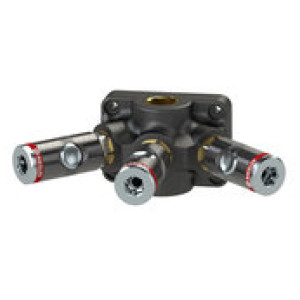

Stenski prikljulček z varnostno tipko I.D. 7.4
SKU: 107579RIE
EAN: 4047322401845
End distributor socket,3 safety couplings I.D.7.4, inputG3/4,Op.pressure max.12bar,temp.air -10°C to 50°C,temp.water 1°C to 50°C
2 or 3-way distributor sockets made of high-strength glass fibre-reinforced plastic (PA6 GF 30) for a wide range of applications. All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape. Drilling diagram dimensions are identical for all distributor sockets, so a simpler and more flexible exchange replacement. Caution: Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 15,63 € x 12 mesecev
- 30,57 € x 6 mesecev
- 60,46 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Dovodni navoj | Spojka | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|
107577RIE | G 1/2 | 3 x Safety coupling | Čas dobave: Predvidoma 3 - 5 dni | 140,08 € | | |
107576RIE | G 1/2 | 2 x Safety coupling | Čas dobave: Predvidoma 3 - 5 dni | 99,75 € | | |
107579RIE | G 3/4 | 3 x Safety coupling | Čas dobave: Predvidoma 3 - 5 dni | 166,75 € | | |
107578RIE | G 3/4 | 2 x Safety coupling | Čas dobave: Predvidoma 3 - 5 dni | 127,73 € | |
Opis
End distributor socket,3 safety couplings I.D.7.4, inputG3/4,Op.pressure max.12bar,temp.air -10°C to 50°C,temp.water 1°C to 50°C
2 or 3-way distributor sockets made of high-strength glass fibre-reinforced plastic (PA6 GF 30) for a wide range of applications. All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape. Drilling diagram dimensions are identical for all distributor sockets, so a simpler and more flexible exchange replacement. Caution: Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.
Tehnični podatki in specifikacije
Dovodni navoj | G 3/4 |
Max. obratovalni tlak [bar] | 12 |
Min. delovna temperatura v zraku [°C] | -10 |
Max. delovna temperatura v zraku [°C] | 50 |
Min. delovna temperatura v vodi [°C] | 1 |
Max. delovna temperatura v vodi [°C] | 50 |
Spojka | 3 x Safety coupling |
Max. moment privijanja - medeninasta nit [Nm] | 12 |
Max. moment privijanja - pritrdilne luknje [Nm] | 4 |
Ohišje | Glass fibre-reinforced plastic PA6 GF 30 |
Material navojev | Brass |
Premer [mm] | 156.0 |
Višina [mm] | 59.0 |
