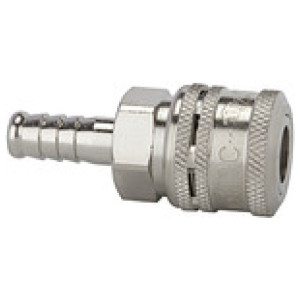

Spojka s cevnim nastavkom I.D. 7.8SEK tip,poniklj. Med.I.D. 9
SKU: 107538RIE
EAN: 4047322216500
Safety coupling I.D. 7.8, SEK type, nickel-plated brass, Sleeve I.D. 9, Operating pressure 0 - 35 bar, Temp. -10 °C to 60 °C
One-hand safety coupling with double locking mechanism.
Connection: Similar to standard couplings, simply by pressing the plug into the coupling. Disconnection: The first locking mechanism is accessible when the sleeve is pushed back. The coupling valve closes. Air can then be relieved from the plug side (hose). The second locking mechanism is released by actuating the unlocking sleeve again. The coupling can now be disconnected.
| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 107537RIE | I.D. 8 | Čas dobave: Predvidoma 3 - 5 dni | 26,40 € |  | |
| 107536RIE | I.D. 6 | Čas dobave: Predvidoma 3 - 5 dni | 26,40 € | | |
| 107540RIE | I.D. 13 | Čas dobave: Predvidoma 3 - 5 dni | 26,40 € | | |
| 107539RIE | I.D. 10 | Čas dobave: Predvidoma 3 - 5 dni | 26,40 € | | |
| 107538RIE | I.D. 9 | Čas dobave: Predvidoma 3 - 5 dni | 26,40 € | |
Opis
Safety coupling I.D. 7.8, SEK type, nickel-plated brass, Sleeve I.D. 9, Operating pressure 0 - 35 bar, Temp. -10 °C to 60 °C
One-hand safety coupling with double locking mechanism.
Connection: Similar to standard couplings, simply by pressing the plug into the coupling. Disconnection: The first locking mechanism is accessible when the sleeve is pushed back. The coupling valve closes. Air can then be relieved from the plug side (hose). The second locking mechanism is released by actuating the unlocking sleeve again. The coupling can now be disconnected.
Tehnični podatki in specifikacije
| DN | 7.8 |
| Povezava | I.D. 9 |
| a/f [mm] | 22 |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Nickel-plated brass |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 60 |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 60 |
| Pretok | 1100 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Nickel-plated brass |
| Rokav | Nickel-plated brass |
| Dolžina [mm] | 60.0 |
