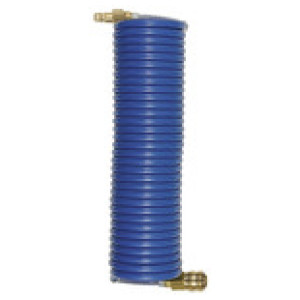

spiralna cev spajanje videz, najlon, cev Ø 9.5x7.9, 7,5 m
SKU: 136346RIE
EAN: 4047322504454
Spiral hose coupling set, Standard coupling I.D. 7.2, Nylon 11 PA, Hose Ø 9.5x7.9, PN at 23 °C max. 12 bar, Length 10 m
These hoses allow gaseous and liquid media to flow safely and efficiently (Air, gases, oils, greases, fuels, organic and inorganic substances).
Thanks to their small coil diameter, they are compact, easy to handle and lightweight.
Very good recoil force owing to the use of nylon 11 (PA).
Not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Povpraševanje
| Šifra | Storitev dolžina max. [m] | Max. obratovalni tlak pri 23 ° C [bar] | Velikost cevi [mm] | Število tuljav | O.D. tuljave [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 113419RIE | 7.5 | 11 | 11.8x9.5 | 23 | 140 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 113417RIE | 2.5 | 11 | 11.8x9.5 | 8 | 140 | Čas dobave: Predvidoma 3 - 5 dni | 102,61 € | | |
| 113411RIE | 2.5 | 13 | 7.9x6.3 | 15 | 75 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 113413RIE | 7.5 | 13 | 7.9x6.3 | 45 | 75 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 113418RIE | 5.0 | 11 | 11.8x9.5 | 15 | 140 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 113414RIE | 2.5 | 12 | 9.5x7.9 | 10 | 115 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 136346RIE | 10.0 | 12 | 9.5x7.9 | 40 | 115 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 113416RIE | 7.5 | 12 | 9.5x7.9 | 30 | 115 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 113415RIE | 5.0 | 12 | 9.5x7.9 | 20 | 115 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 113412RIE | 5.0 | 13 | 7.9x6.3 | 30 | 75 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 136345RIE | 10.0 | 13 | 7.9x6.3 | 60 | 75 | Čas dobave: Predvidoma 3 - 5 dni | 112,80 € | | |
| 136347RIE | 10.0 | 11 | 11.8x9.5 | 30 | 140 | Čas dobave: Predvidoma 3 - 5 dni | 159,56 € | |
Opis
Spiral hose coupling set, Standard coupling I.D. 7.2, Nylon 11 PA, Hose Ø 9.5x7.9, PN at 23 °C max. 12 bar, Length 10 m
These hoses allow gaseous and liquid media to flow safely and efficiently (Air, gases, oils, greases, fuels, organic and inorganic substances).
Thanks to their small coil diameter, they are compact, easy to handle and lightweight.
Very good recoil force owing to the use of nylon 11 (PA).
Not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 100 |
| Max. obratovalni tlak pri 23 ° C [bar] | 12 |
| Velikost cevi [mm] | 9.5x7.9 |
| O.D. tuljave [mm] | 115 |
| Število tuljav | 40 |
| Storitev dolžina max. [m] | 10.0 |
