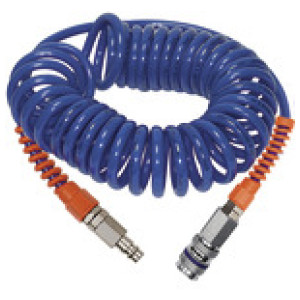

Spir. cev jekl. , PU, cev Ø 9.5x6.3, dolžina 7,5 m
SKU: 144364RIE
EAN: 4047322578455
Spiral hose coupling set, Steel coupling I.D. 7.8, PU, Hose Ø 9.5x6.3, PN at 23 °C max. 10 bar, Length 7.5 m
These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional nylon spiral hose, but with less tendency to loop and significantly better resistance to abrasion.
There is consequently less danger of scratching coated or sensitive surfaces.
The hose is extremely flexible and non-kinking.
Not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Povpraševanje
| Šifra | Storitev dolžina max. [m] | Velikost cevi [mm] | Max. obratovalni tlak pri 23 ° C [bar] | O.D. tuljave [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 144359RIE | 7.5 | 8x5 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 144365RIE | 10.0 | 9.5x6.3 | 10 | 60 | Čas dobave: Predvidoma 3 - 5 dni | 159,93 € | | |
| 144367RIE | 6.0 | 12x8 | 9 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 145,41 € | | |
| 144363RIE | 6.0 | 9.5x6.3 | 10 | 60 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 144368RIE | 7.5 | 12x8 | 9 | 80 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 144358RIE | 6.0 | 8x5 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 144361RIE | 10.0 | 8x5 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 144362RIE | 3.0 | 9.5x6.3 | 10 | 60 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 144364RIE | 7.5 | 9.5x6.3 | 10 | 60 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 144357RIE | 3.0 | 8x5 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 144366RIE | 3.0 | 12x8 | 9 | 80 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 144369RIE | 10.0 | 12x8 | 9 | 80 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Spiral hose coupling set, Steel coupling I.D. 7.8, PU, Hose Ø 9.5x6.3, PN at 23 °C max. 10 bar, Length 7.5 m
These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional nylon spiral hose, but with less tendency to loop and significantly better resistance to abrasion.
There is consequently less danger of scratching coated or sensitive surfaces.
The hose is extremely flexible and non-kinking.
Not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 74 |
| Max. obratovalni tlak pri 23 ° C [bar] | 10 |
| Velikost cevi [mm] | 9.5x6.3 |
| Storitev dolžina max. [m] | 7.5 |
| O.D. tuljave [mm] | 60 |
