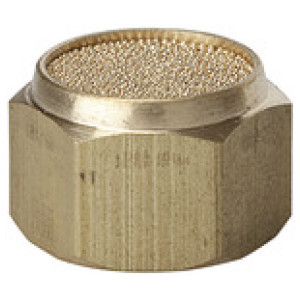

Sintrani bron Glušnik, raven, M5 i., AF 8
SKU: 113357RIE
EAN: 4047322101028
Sintered bronze silencer, flat, M5 i., AF 8, Operating pressure max. 10 bar, Operating temperature -10 °C to 250 °C
For reducing the exhaust noise generated by pneumatic equipment.
Čas dobave: Predvidoma 3 - 5 dni
2,59 €

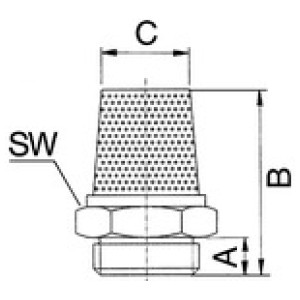

| Šifra | Navoj | C [mm] | B [mm] | a/f [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 113358RIE | G 1/8 | 9.0 | 10.0 | 13 | Čas dobave: Predvidoma 3 - 5 dni | 2,59 € |  | |
| 113359RIE | G 1/4 | 11.0 | 11.0 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 3,27 € | | |
| 113360RIE | G 3/8 | 15.0 | 12.0 | 19 | Čas dobave: Predvidoma 3 - 5 dni | 5,33 € | | |
| 113363RIE | G 1 | 37.0 | 22.0 | 41 | Čas dobave: Predvidoma 3 - 5 dni | 32,12 € | | |
| 113361RIE | G 1/2 | 20.0 | 13.0 | 24 | Čas dobave: Predvidoma 3 - 5 dni | 7,53 € | | |
| 113362RIE | G 3/4 | 28.0 | 18.0 | 32 | Čas dobave: Predvidoma 3 - 5 dni | 21,09 € | | |
| 113357RIE | M5 | 5.0 | 8.0 | 8 | Čas dobave: Predvidoma 3 - 5 dni | 2,59 € | |
Opis
Sintered bronze silencer, flat, M5 i., AF 8, Operating pressure max. 10 bar, Operating temperature -10 °C to 250 °C
For reducing the exhaust noise generated by pneumatic equipment.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 250 |
| Navoj | M5 |
| a/f [mm] | 8 |
| B [mm] | 8.0 |
| C [mm] | 5.0 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
