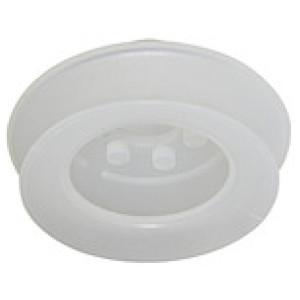

Sesalna šalčka meh, okrogla 1.5 pregib, Silikon, FGA Ø25
SKU: 108502RIE
EAN: 4047322202770
Bellows suction cup, Round 1.5 folds, Silicone material, »FGA«, ø25 mm, suitable connection nipple IT G 1/8, ET G 1/8
Robust and hard-wearing suction pad with a single sealing lip.
Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to compensate varying workpiece heights or uneven surfaces or to handle easily damaged parts. It acts as the connecting element between the vacuum generator and the workpiece.
Properties:
- Very stiff top fold
- Soft, tapered sealing lips
- Supports on the bottom
- High suction force
- Optimum damping effect
- Very good adaptation to curved workpiece surfaces or materials with?uneven surfaces
Applications:
- Handling workpieces with extremely uneven surfaces (e.g. pipes)
- Handling easily damaged parts
| Šifra | Primerna povezava priključka z notranjim navojem | Primerna povezava priključka z zunanjim navojem | Prostornina [cm³] | Ø notranje cevi [mm] | Sesalna sila [N] | Izvlečna sila [N] | Min. izbočen polmer krivine [mm] | Premer [mm] | Višina priključka z notranjim navojem [mm] | Višina priključka z zunanjim navojem [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 108502RIE | G 1/8 | G 1/8 | 3.150 | 4 | 5.3 | 17.3 | 20 | 25 | 29.0 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,10 € |  | |
| 108503RIE | G 1/4 | G 1/4 | 4.750 | 6 | 13.6 | 39.6 | 40 | 33 | 31.0 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,35 € | | |
| 108501RIE | M5 / G 1/8 | G 1/8 | 1.150 | 4 | 4.7 | 10.7 | 30 | 20 | 20.5 / 21.5 | 27.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,83 € | | |
| 108498RIE | M5 / G 1/8 | G 1/8 | 0.225 | 4 | 0.95 | 3.8 | 10 | 11 | 21.0 / 22.0 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,27 € | | |
| 108499RIE | M5 / G 1/8 | G 1/8 | 0.420 | 4 | 1.2 | 5 | 13 | 14 | 21.0 / 22.0 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,76 € | | |
| 108500RIE | M5 / G 1/8 | G 1/8 | 0.750 | 4 | 2.3 | 6.7 | 20 | 16 | 24.0 / 25.0 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,06 € | | |
| 108504RIE | G 1/4 | G 1/4 | 9.250 | 6 | 22.8 | 64.5 | 60 | 43 | 32.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,29 € | | |
| 108505RIE | G 1/4 | G 1/4 | 26.250 | 6 | 51.3 | 95 | 75 | 53 | 38.0 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,85 € | |
Opis
Bellows suction cup, Round 1.5 folds, Silicone material, »FGA«, ø25 mm, suitable connection nipple IT G 1/8, ET G 1/8
Robust and hard-wearing suction pad with a single sealing lip.
Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to compensate varying workpiece heights or uneven surfaces or to handle easily damaged parts. It acts as the connecting element between the vacuum generator and the workpiece.
Properties:
- Very stiff top fold
- Soft, tapered sealing lips
- Supports on the bottom
- High suction force
- Optimum damping effect
- Very good adaptation to curved workpiece surfaces or materials with?uneven surfaces
Applications:
- Handling workpieces with extremely uneven surfaces (e.g. pipes)
- Handling easily damaged parts
Tehnični podatki in specifikacije
| Premer [mm] | 25 |
| Sesalna sila [N] | 5.3 |
| Izvlečna sila [N] | 17.3 |
| Primerna povezava priključka z zunanjim navojem | G 1/8 |
| Primerna povezava priključka z notranjim navojem | G 1/8 |
| Ø notranje cevi [mm] | 4 |
| Višina priključka z notranjim navojem [mm] | 29.0 |
| Prostornina [cm³] | 3.150 |
| Min. izbočen polmer krivine [mm] | 20 |
| Višina priključka z zunanjim navojem [mm] | 35.0 |
