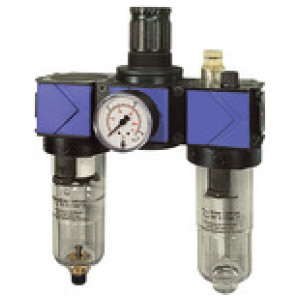

Serv. enota 3-delna »variobloc« z PC zbir.Vel. 2G 1
SKU: 100716RIE
EAN: 4047322212755
Service unit 3-part »variobloc« with PC container, Size 2, G 1, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 11,40 € x 36 mesecev
- 16,38 € x 24 mesecev
- 31,35 € x 12 mesecev
- 61,32 € x 6 mesecev
- 121,28 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
100715RIE | G 3/4 | 2 | 98.0 | 210.0 | 274.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 281,80 € | | |
100713RIE | G 3/8 | 1 | 68.0 | 144.0 | 201.0 | 1800 | Čas dobave: Predvidoma 3 - 5 dni | 182,15 € | | |
100714RIE | G 1/2 | 2 | 98.0 | 210.0 | 274.0 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | 281,80 € | | |
100716RIE | G 1 | 2 | 98.0 | 264.0 | 274.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 335,22 € | | |
100712RIE | G 1/4 | 1 | 68.0 | 144.0 | 201.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 182,15 € | |
Opis
Service unit 3-part »variobloc« with PC container, Size 2, G 1, Input pressure max. 16 bar, Medium / ambient temp. max. 50 °C
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Tehnični podatki in specifikacije
Navoj | G 1 |
Max. vhodni tlak [bar] | 16 |
Velikost | 2 |
Ohišje | Die-cast zinc |
Tesnilo | NBR |
Membrane | NBR |
Rang filtra [µm] | 40 |
Vidna kupola | PA |
Max. temperatura medija [°C] | 50 |
Max. sobna temperatura [°C] | 50 |
Vzmet pokrova motorja | POM |
Odtok kondenzata | Manual |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 10 |
Zaslon manometra max. [bar] | 10 |
Pretok [l/min] | 5000 |
Posoda | Polycarbonate container |

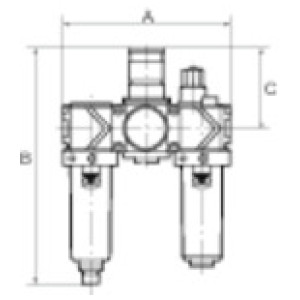

A [mm] | 264.0 |
B [mm] | 274.0 |
C [mm] | 98.0 |
Serija | variobloc |
Merjenje pretoka | At P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
