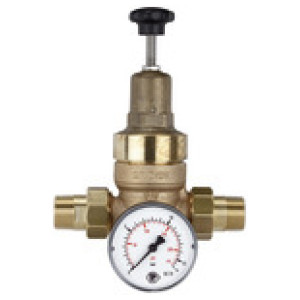

Regulator tlaka za pitno vodo, brez DVGW, R 1
SKU: 101329RIE
EAN: 4047322274555
Pressure regulator for potable water, without DVGW, pressure gauge, R 1, Control range 1.5 - 12 bar, Input pressure max. 25 bar
Pressure regulator with pressure-reduced single-seated piston valve or single-seated diaphragm valve and built-in strainer. Specially designed for use with water.
The device is also suitable for all other applications involving neutral non-sticky liquids, air and neutral non-flammable gases.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 10,41 € x 24 mesecev
- 19,93 € x 12 mesecev
- 38,99 € x 6 mesecev
- 77,12 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

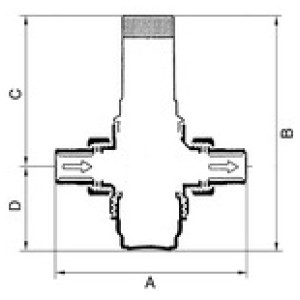

Šifra | Navoj | Vzmet pokrova motorja | Pretok KVS vrednost [m³/h] | DN | D [mm] | A [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
101330RIE | R 1 1/4 | Hot-pressed brass | 6.1 | 32 | 47.0 | 177.2 | 187.0 | 234.0 | Čas dobave: Predvidoma 3 - 5 dni | 317,96 € | | |
101331RIE | R 1 1/2 | Cast iron | 12 | 40 | 59.0 | 210.0 | 320.0 | 379.0 | Čas dobave: Predvidoma 3 - 5 dni | 605,17 € | | |
101332RIE | R 2 | Cast iron | 13 | 50 | 61.0 | 210.0 | 320.0 | 381.0 | Čas dobave: Predvidoma 3 - 5 dni | 665,30 € | | |
101329RIE | R 1 | Hot-pressed brass | 5.4 | 25 | 28.5 | 160.0 | 150.0 | 178.5 | Čas dobave: Predvidoma 3 - 5 dni | 213,00 € | | |
101328RIE | R 3/4 | Hot-pressed brass | 3.9 | 20 | 27.0 | 141.0 | 150.0 | 177.0 | Čas dobave: Predvidoma 3 - 5 dni | 196,15 € | | |
101327RIE | R 1/2 | Hot-pressed brass | 2.9 | 15 | 27.0 | 137.0 | 150.0 | 177.0 | Čas dobave: Predvidoma 3 - 5 dni | 184,21 € | |
Opis
Pressure regulator for potable water, without DVGW, pressure gauge, R 1, Control range 1.5 - 12 bar, Input pressure max. 25 bar
Pressure regulator with pressure-reduced single-seated piston valve or single-seated diaphragm valve and built-in strainer. Specially designed for use with water.
The device is also suitable for all other applications involving neutral non-sticky liquids, air and neutral non-flammable gases.
Tehnični podatki in specifikacije
Navoj | R 1 |
Max. vhodni tlak [bar] | 25 |
Max. delovna temperatura [°C] | 75 |
Ohišje | Bronze (Rg5) |
Tesnilo | NBR-SBR |
Min. krmilno območje [bar] | 1.5 |
Max. krmilno območje [bar] | 12 |
A [mm] | 160.0 |
B [mm] | 178.5 |
C [mm] | 150.0 |
D [mm] | 28.5 |
Vzmet pokrova motorja | Hot-pressed brass |
Pretok KVS vrednost [m³/h] | 5.4 |
Notranji deli | Plastic, brass, stainless steel |
Min. primarna (vstopni) tlak [bar] | 2.5 |
Min. padec tlaka [bar] | 1 |
DN | 25 |
