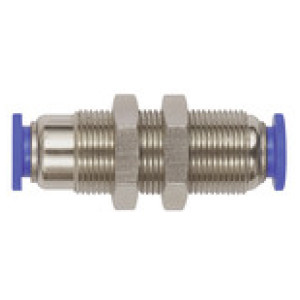

Ravni vtični konektor pregradni »blue serija«, Samozaporna
SKU: 110213RIE
EAN: 4047322390477

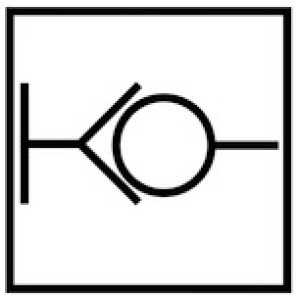

Straight push-in bulkhead connector »Blue Series«, Self-locking, M16x1.0, for hose exterior Ø 8 mm, pmax 10 barThe air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Čas dobave: Predvidoma 3 - 5 dni
13,27 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 110213RIE | M16x1.0 | 8 | 19 | 50.8 | Čas dobave: Predvidoma 3 - 5 dni | 13,27 € |  | |
| 110212RIE | M14x1 | 6 | 17 | 47.2 | Čas dobave: Predvidoma 3 - 5 dni | 12,40 € | | |
| 110215RIE | M22x1.0 | 12 | 27 | 68.7 | Čas dobave: Predvidoma 3 - 5 dni | 22,75 € | |
Opis
The air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Navoj | M16x1.0 |
| Za cevi O.D. [mm] | 8 |

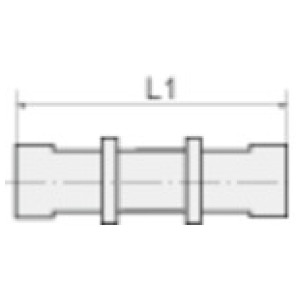

| L1 [mm] | 50.8 |
| a/f [mm] | 19 |
| Material | Plastic and nickel-plated brass |
