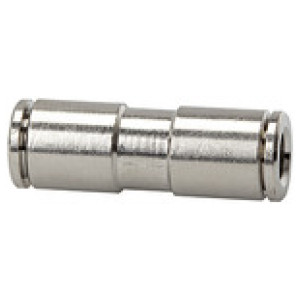

Ravni vtični konektor »Metallica«, za cev zunanja Ø 8 mm
SKU: 108968RIE
EAN: 4047322279093
Straight push-in connector »metallica«, for hose exterior Ø 8, Working pressure -0.98 to 16 bar, Operating temp. -20 °C to 150 °C
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
5,31 €
| Šifra | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 136779RIE | 16 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 34,27 € |  | |
| 108968RIE | 8 | 37.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,31 € | | |
| 108966RIE | 4 | 31.0 | Na zalogi | 4,31 € | | |
| 108970RIE | 12 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,76 € | | |
| 108967RIE | 6 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,72 € | | |
| 108971RIE | 14 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,76 € | | |
| 108969RIE | 10 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,14 € | |
Opis
Straight push-in connector »metallica«, for hose exterior Ø 8, Working pressure -0.98 to 16 bar, Operating temp. -20 °C to 150 °C
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Union |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 37.0 |
| Material | Nickel-plated brass |
