* slike so simbolične
Ravni vtični konektor »klik klak« M14x1, cev ext. Premer 5
SKU: 108722RIE
EAN: 4047322292016

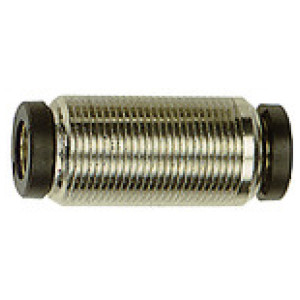

Straight push-in connector »click-clock«, M14x1, for hose exterior Ø 5 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
4,79 €
| Šifra | Navoj | Rokav | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 108724RIE | M15x1.0 | Hostaform | 8 | 35.7 | Čas dobave: Predvidoma 3 - 5 dni | 4,54 € |  | |
| 108722RIE | M14x1.0 | Hostaform | 5 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,79 € | | |
| 108726RIE | M20x1.0 | Hostaform | 12 | 39.7 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € | | |
| 108727RIE | M24x1.0 | Hostaform | 14 | 45.9 | Čas dobave: Predvidoma 3 - 5 dni | 8,20 € | | |
| 108720RIE | M8x0.75 | Nickel-plated brass | 3 | 18.4 | Čas dobave: Predvidoma 3 - 5 dni | 4,62 € | | |
| 108725RIE | M17x1.0 | Hostaform | 10 | 39.2 | Čas dobave: Predvidoma 3 - 5 dni | 6,40 € | | |
| 108723RIE | M13x1.0 | Hostaform | 6 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,05 € | | |
| 108721RIE | M11x1.0 | Hostaform | 4 | 30.6 | Čas dobave: Predvidoma 3 - 5 dni | 3,87 € | |
Opis
Straight push-in connector »click-clock«, M14x1, for hose exterior Ø 5 mm, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | M14x1.0 |
| Za cevi O.D. [mm] | 5 |

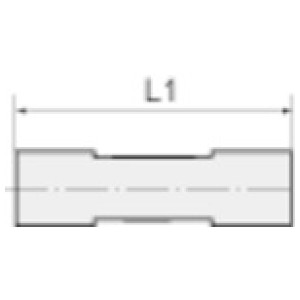

| L1 [mm] | 33.5 |
| Material | Nickel-plated brass |
