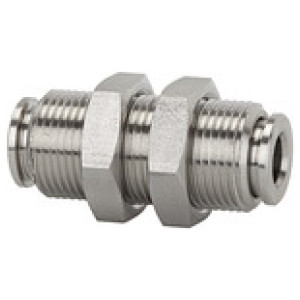

Ravni vtični konekt. pregradni, M16x1, zun. premera 8
SKU: 110428RIE
EAN: 4047322269087
Straight push-in bulkhead connector, M16x1, for hose exterior Ø 8 mm, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Ravni vtični konekt. pregradni, M16x1, zun. premera 8
Material: Stainless steel 1.4404
Navoj: M16x1.0
Primerni materiali za cevi: PVDF, PTFE, PA, PU
Navoj: M16x1.0
Primerni materiali za cevi: PVDF, PTFE, PA, PU
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 110430RIE | M20x1.0 | 12 | 24 | 40.8 | Čas dobave: Predvidoma 3 - 5 dni | 98,95 € |  | |
| 110428RIE | M16x1.0 | 8 | 19 | 34.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 110429RIE | M18x1.0 | 10 | 21 | 38.6 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 110427RIE | M14x1.0 | 6 | 17 | 34.4 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 110426RIE | M12x1.0 | 4 | 15 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Straight push-in bulkhead connector, M16x1, for hose exterior Ø 8 mm, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 15 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Delovni tlak pulzira [bar] | 10 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Navoj | M16x1.0 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 34.5 |
| a/f [mm] | 19 |
| Material | Stainless steel 1.4404 |
