* slike so simbolične

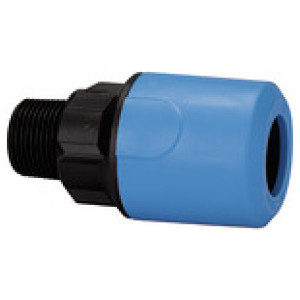

Ravni vijačni prik. PP, G 1 , zun. Ø 32 mm
SKU: 110276RIE
EAN: 4047322337724
Straight screw-in fitting PP, G 1 o., for hose exterior Ø 32 mm, Working pressure max. 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Povpraševanje

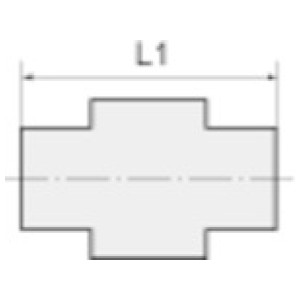

L1 [mm]: 111.4
| Šifra | Navoj | Max. delovni tlak [bar] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 110277RIE | G 1 1/2 | 12 | 49 | 109.2 | Čas dobave: Predvidoma 3 - 5 dni | 26,89 € |  | |
| 110276RIE | G 1 | 16 | 46 | 111.4 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Straight screw-in fitting PP, G 1 o., for hose exterior Ø 32 mm, Working pressure max. 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 16 |
| Max. delovna temperatura [°C] | 20 |
| Navoj | G 1 |
| Za cevi O.D. [mm] | 32 |
| L1 [mm] | 111.4 |
| a/f [mm] | 46 |
| Material | Polypropylene, glass fibre-reinforced (PP) |
