* slike so simbolične

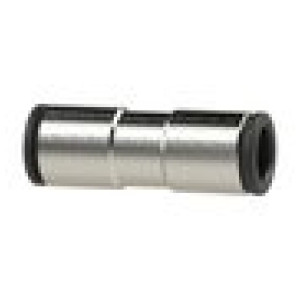

Ravni spojnik »Value line«, za cev zunanji Ø 12 mm
SKU: 115936RIE
EAN: 4047322183437
Straight connector »value line«, for hose exterior Ø 12 mm, Working pressure -0.98 to 16 bar, temperature -20 °C to 80 °C
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
| Šifra | Rokav | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 115935RIE | Black nickel-plated | 10 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 115933RIE | Hostaform | 6 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,83 € | | |
| 115936RIE | Black nickel-plated | 12 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,39 € | | |
| 115932RIE | Hostaform | 4 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,83 € | | |
| 115934RIE | Hostaform | 8 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,14 € | |
Opis
Straight connector »value line«, for hose exterior Ø 12 mm, Working pressure -0.98 to 16 bar, temperature -20 °C to 80 °C
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Tehnični podatki in specifikacije
| Serija | value line |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Tesnilo | NBR, silicone-free |
| Priporočena cev | PA, PU |
| Vpenjalo | Stainless steel AISI 316 |
| Rokav | Black nickel-plated |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 43.0 |
| Material | Nickel-plated brass |
