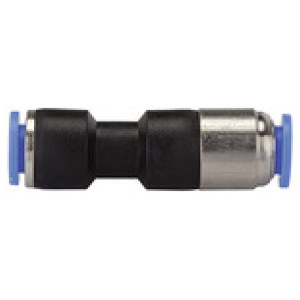

Ravni protipovratni ventil Blue serija, Vtični prik., cev Ø 4
SKU: 110254RIE
EAN: 4047322267748
Straight check valve »Blue Series«, Plug connector, for hose exterior Ø 4 mm, pmax 10 barThe non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Ravni protipovratni ventil Blue serija, Vtični prik., cev Ø 4
Material: Plastic/nickel-plated brass
Priporočena cev: PU or PA (nylon)
Rokav: Plastic blue
Serija: Blue series
Srednje: Compressed air
Priporočena cev: PU or PA (nylon)
Rokav: Plastic blue
Serija: Blue series
Srednje: Compressed air
| Šifra | Material | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 110257RIE | Plastic/nickel-plated brass | 10 | 62.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 133936RIE | Plastic | 8 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 110258RIE | Plastic/nickel-plated brass | 12 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 110256RIE | Plastic/nickel-plated brass | 8 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 133937RIE | Plastic | 6 | 41.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 110254RIE | Plastic/nickel-plated brass | 4 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 110255RIE | Plastic/nickel-plated brass | 6 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
The non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Min. tlak odpiranja [bar] | 0.2 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Za cevi O.D. [mm] | 4 |
| L1 [mm] | 47.0 |
| Material | Plastic/nickel-plated brass |
