* slike so simbolične

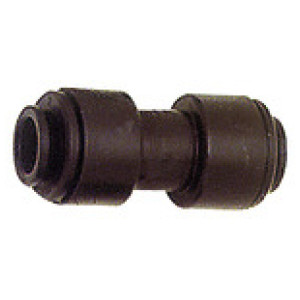

Ravni priključek POM, za cev zunanji Ø 18 mm
SKU: 110285RIE
EAN: 4047322111553
Straight connector POM, for hose exterior Ø 18 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
| Šifra | Max. delovni tlak [bar] | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 110286RIE | 10 | 22 | 70.6 | Čas dobave: Predvidoma 3 - 5 dni | 12,54 € |  | |
| 110280RIE | 16 | 6 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,54 € | | |
| 110285RIE | 10 | 18 | 64.1 | Čas dobave: Predvidoma 3 - 5 dni | 10,92 € | | |
| 110279RIE | 16 | 5 | 32.6 | Čas dobave: Predvidoma 3 - 5 dni | 3,54 € | | |
| 110284RIE | 10 | 15 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,08 € | | |
| 110287RIE | 10 | 28 | 90.8 | Čas dobave: Predvidoma 3 - 5 dni | 25,18 € | | |
| 110283RIE | 10 | 12 | 53.8 | Čas dobave: Predvidoma 3 - 5 dni | 6,03 € | | |
| 110278RIE | 16 | 4 | 32.6 | Čas dobave: Predvidoma 3 - 5 dni | 3,54 € | | |
| 110282RIE | 10 | 10 | 41.9 | Čas dobave: Predvidoma 3 - 5 dni | 5,36 € | | |
| 110281RIE | 16 | 8 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,90 € | |
Opis
Straight connector POM, for hose exterior Ø 18 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Min. delovna temperatura v zraku [°C] | -20 |
| Max. delovna temperatura v zraku [°C] | 65 |
| Min. delovna temperatura v vodi [°C] | 1 |
| Max. delovna temperatura v vodi [°C] | 70 |
| Za cevi O.D. [mm] | 18 |
| L1 [mm] | 64.1 |
| Material | Acetal polymer (POM) |
