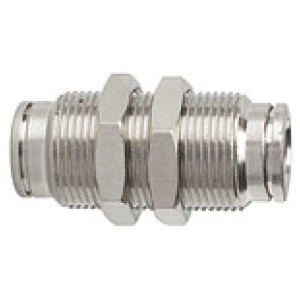

Ravni potisni v pregradni priključek »Metallica«, M20x1
SKU: 108980RIE
EAN: 4047322390965
Straight push-in bulkhead connector »metallica«, M20x1, for hose exterior Ø 12 mm, Working pressure -0.98 to 16 bar
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
11,30 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 108981RIE | M22x1.0 | 14 | 25 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,97 € |  | |
| 108977RIE | M14x1.0 | 6 | 17 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,62 € | | |
| 108978RIE | M16x1.0 | 8 | 18 | 37.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,37 € | | |
| 108979RIE | M17x1.0 | 10 | 20 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | 9,69 € | | |
| 108976RIE | M10x1.0 | 4 | 13 | 31.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,44 € | | |
| 136780RIE | M28x1.5 | 16 | 36 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 41,15 € | | |
| 108980RIE | M20x1.0 | 12 | 24 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,30 € | |
Opis
Straight push-in bulkhead connector »metallica«, M20x1, for hose exterior Ø 12 mm, Working pressure -0.98 to 16 bar
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Female bulkhead connectors |
| Navoj | M20x1.0 |
| Za cevi O.D. [mm] | 12 |

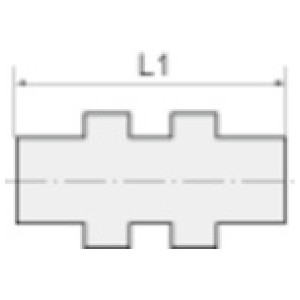

| L1 [mm] | 42.0 |
| a/f [mm] | 24 |
| Material | Nickel-plated brass |
