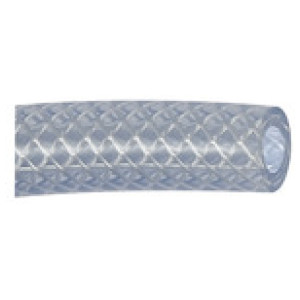

PVC braided hose, Hose ø 12x6, Roll of 50 m
SKU: 129157RIE
EAN: 4047322728300
PVC braided hose, Temperature -20 °C to 60 °C, Hose ø 12x6, PN at 23 °C max. 15 bar air, 20 bar fluids, Roll of 50 m
Flexible, pressure-resistant and non-abrasive standard hose for a wide range of applications in industry, machinery and plant construction, commerce, manual trades and laboratories.
- Complies with EU Regulation No. 10/2011 regarding contact with food, simulants A, B, C
- Use of high-quality materials guarantees enhanced durability and UV protection
Povpraševanje
| Šifra | I.D. cevi [mm] | O.D. cevi [mm] | Max. obratovalni tlak pri 23 ° C [bar] | Max. obratovalni tlak tekočine pri 23 ° C [bar] | Dolžina koluta [m] | Min. polmer upogibanja [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 129167RIE | 8 | 14 | 15 | 20 | 25 | 25 | Ni na zalogi | ? | Povpraševanje |  |
| 129173RIE | 19 | 26 | 15 | 20 | 25 | 95 | Ni na zalogi | ? | Povpraševanje | |
| 129165RIE | 25 | 33 | 12 | 16 | 50 | 150 | Ni na zalogi | ? | Povpraševanje | |
| 129156RIE | 4 | 10 | 22.5 | 30 | 50 | 12 | Čas dobave: Predvidoma 3 - 5 dni | 164,09 € | | |
| 129157RIE | 6 | 12 | 15 | 20 | 50 | 16 | Ni na zalogi | ? | Povpraševanje | |
| 129177RIE | 50 | 60 | 3.75 | 5 | 25 | 340 | Ni na zalogi | ? | Povpraševanje | |
| 129174RIE | 25 | 33 | 12 | 16 | 25 | 150 | Ni na zalogi | ? | Povpraševanje | |
| 129166RIE | 6 | 12 | 15 | 20 | 25 | 16 | Ni na zalogi | ? | Povpraševanje | |
| 129159RIE | 9 | 15 | 15 | 20 | 50 | 31 | Ni na zalogi | ? | Povpraševanje | |
| 129162RIE | 13 | 19 | 15 | 20 | 50 | 55 | Ni na zalogi | ? | Povpraševanje | |
| 129170RIE | 12 | 18 | 15 | 20 | 25 | 49 | Ni na zalogi | ? | Povpraševanje | |
| 129169RIE | 10 | 16 | 15 | 20 | 25 | 35 | Ni na zalogi | ? | Povpraševanje | |
| 129171RIE | 13 | 19 | 15 | 20 | 25 | 55 | Ni na zalogi | ? | Povpraševanje | |
| 129160RIE | 10 | 16 | 15 | 20 | 50 | 35 | Ni na zalogi | ? | Povpraševanje | |
| 129158RIE | 8 | 14 | 15 | 20 | 50 | 25 | Ni na zalogi | ? | Povpraševanje | |
| 129163RIE | 16 | 23 | 15 | 20 | 50 | 70 | Ni na zalogi | ? | Povpraševanje | |
| 129164RIE | 19 | 26 | 15 | 20 | 50 | 95 | Ni na zalogi | ? | Povpraševanje | |
| 129175RIE | 32 | 42 | 5.25 | 7 | 25 | 180 | Ni na zalogi | ? | Povpraševanje | |
| 129176RIE | 38 | 48 | 4.5 | 6 | 25 | 250 | Ni na zalogi | ? | Povpraševanje | |
| 129168RIE | 9 | 15 | 15 | 20 | 25 | 31 | Ni na zalogi | ? | Povpraševanje | |
| 129172RIE | 16 | 23 | 15 | 20 | 25 | 70 | Ni na zalogi | ? | Povpraševanje | |
| 129161RIE | 12 | 18 | 15 | 20 | 50 | 49 | Ni na zalogi | ? | Povpraševanje | |
Opis
PVC braided hose, Temperature -20 °C to 60 °C, Hose ø 12x6, PN at 23 °C max. 15 bar air, 20 bar fluids, Roll of 50 m
Flexible, pressure-resistant and non-abrasive standard hose for a wide range of applications in industry, machinery and plant construction, commerce, manual trades and laboratories.
- Complies with EU Regulation No. 10/2011 regarding contact with food, simulants A, B, C
- Use of high-quality materials guarantees enhanced durability and UV protection
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 60 |
| I.D. cevi [mm] | 6 |
| O.D. cevi [mm] | 12 |
| Min. polmer upogibanja [mm] | 16 |
| Max. obratovalni tlak pri 23 ° C [bar] | 15 |
| Max. obratovalni tlak tekočine pri 23 ° C [bar] | 20 |
| Dolžina koluta [m] | 50 |
