Pulz. ventil s prepono,NC, 230 V, 50 - 60 Hz not. predkontrola
SKU: 102987RIE
EAN: 4047322161251

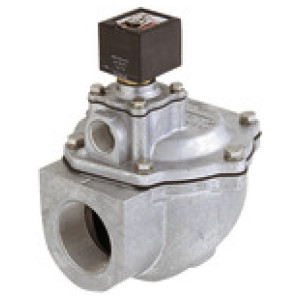

Pulse diaphragm valve, NC, 230 V, 50 - 60 Hz internal pre-control, Medium temp. max. 85 °C, G 2 1/2, PN 0.35-8.5 bar, CR diaphragm
Environmental protection today demands state-of-the-art cleaning processes. Dust filter systems are an indispensable aid to pollution control.
The fabric filters installed in these systems are cleaned by blowing in compressed air pulses in quick succession counter to the main direction of flow.
The solenoid valves used for this purpose are characterised by the following application-specific design features:
- Angle type of construction to optimise the air flow
- Full cross-section at the valve seat
- Extremely fast opening and closing
- Quiet operation thanks to built-in silencers (can be retrofitted in sizes 1 1/2 to 2 1/2)
- Easy maintenance and repair because diaphragm and wearing parts are instantly available
The valves are not suitable as shut-off devices for standard applications.
Obrestno financiranje
- 12,20 € x 48 mesecev
- 15,58 € x 36 mesecev
- 22,39 € x 24 mesecev
- 42,86 € x 12 mesecev
- 83,83 € x 6 mesecev
- 165,81 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Min. temperatura medija [°C] | Membrane | Navoj | Odzračevalni vtič | Min. obratovalni tlak [bar] | Vrsta | DN | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 102983RIE | -20 | TPE | G 3/4 | - | 0.35 | 1 | 25 | 75.0 | 89.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 199902RIE | -15 | TPE | G 1 1/2 | G 3/8 | 2 | 2 | 55 | 61.0 | 132.0 | Ni na zalogi | ? | Povpraševanje | |
| 102985RIE | -20 | CR | G 1 1/2 | G 3/8 | 0.35 | 2 | 52 | 80.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 258,40 € | | |
| 102987RIE | -20 | CR | G 2 1/2 | G 3/4 | 0.35 | 2 | 66 | 80.0 | 168.0 | Čas dobave: Predvidoma 3 - 5 dni | 458,23 € | | |
| 199901RIE | -15 | TPE | G 1 | - | 2 | 1 | 32 | 61.0 | 90.0 | Ni na zalogi | ? | Povpraševanje | |
| 102986RIE | -20 | CR | G 2 | G 3/4 | 0.35 | 2 | 66 | 80.0 | 168.0 | Čas dobave: Predvidoma 3 - 5 dni | 434,25 € | | |
| 102984RIE | -20 | TPE | G 1 | - | 0.35 | 1 | 25 | 75.0 | 89.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 199900RIE | -15 | TPE | G 3/4 | - | 2 | 1 | 32 | 61.0 | 90.0 | Ni na zalogi | ? | Povpraševanje | |
Opis
Pulse diaphragm valve, NC, 230 V, 50 - 60 Hz internal pre-control, Medium temp. max. 85 °C, G 2 1/2, PN 0.35-8.5 bar, CR diaphragm
Environmental protection today demands state-of-the-art cleaning processes. Dust filter systems are an indispensable aid to pollution control.
The fabric filters installed in these systems are cleaned by blowing in compressed air pulses in quick succession counter to the main direction of flow.
The solenoid valves used for this purpose are characterised by the following application-specific design features:
- Angle type of construction to optimise the air flow
- Full cross-section at the valve seat
- Extremely fast opening and closing
- Quiet operation thanks to built-in silencers (can be retrofitted in sizes 1 1/2 to 2 1/2)
- Easy maintenance and repair because diaphragm and wearing parts are instantly available
The valves are not suitable as shut-off devices for standard applications.
Tehnični podatki in specifikacije
| Ohišje | Aluminium |
| Min. obratovalni tlak [bar] | 0.35 |
| Max. obratovalni tlak [bar] | 8.5 |
| Navoj | G 2 1/2 |
| Notranji deli | Stainless steel |
| Tesnilo | NBR |
| IP zaščita | IP65 (with connector socket fitted) |
| Električni priključek | ISO 4400 (connector socket) |
| DN | 66 |
| Membrane | CR |
| Odzračevalni vtič | G 3/4 |
| Vrsta | 2 |
| Ffunkcija | normally closed (NC) |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 85 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 85 |

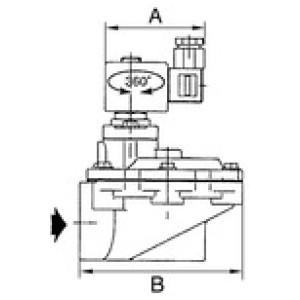

| B [mm] | 168.0 |
| A [mm] | 80.0 |
