Predfilter »multifix« PC zbir.Zašč. kletkaVel. 4G 1
SKU: 133116RIE
EAN: 4047322476058

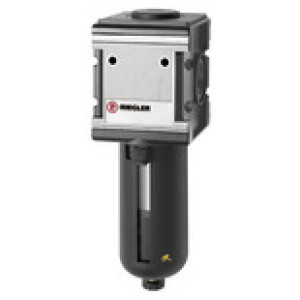

Pre-filter »multifix« with PC container and protective cage, 0.3 µm, Size 4, G 1, Input pressure max. 16 bar, Temp. max. 60 °C
For filtering out solid impurities larger than 0.3 µm.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 13,49 € x 24 mesecev
- 25,83 € x 12 mesecev
- 50,52 € x 6 mesecev
- 99,92 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

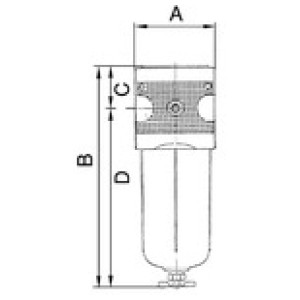

Šifra | Navoj | Ohišje | Velikost | DN | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
133115RIE | G 3/4 | Die-cast aluminium | 4 | 20 | 58.0 | 85.0 | 190.0 | 248.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 276,09 € | | |
100529RIE | G 1/4 | Die-cast zinc | 1 | 6 | 27.0 | 47.8 | 125.1 | 152.1 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 129,97 € | | |
133116RIE | G 1 | Die-cast aluminium | 4 | 25 | 58.0 | 85.0 | 190.0 | 248.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 276,09 € | | |
100530RIE | G 1/2 | Die-cast zinc | 3 | 15 | 38.5 | 68.8 | 147.3 | 185.8 | 500 | Čas dobave: Predvidoma 3 - 5 dni | 204,19 € | |
Opis
Pre-filter »multifix« with PC container and protective cage, 0.3 µm, Size 4, G 1, Input pressure max. 16 bar, Temp. max. 60 °C
For filtering out solid impurities larger than 0.3 µm.
Tehnični podatki in specifikacije
Navoj | G 1 |
Max. vhodni tlak [bar] | 16 |
Velikost | 4 |
Tesnilo | NBR |
Element filtra | Paper-POM |
Rang filtra [µm] | 0.3 |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Pretok [l/min] | 2000 |
DN | 25 |
Ohišje | Die-cast aluminium |
Posoda | Polycarbonate container with protective cage |
A [mm] | 85.0 |
B [mm] | 248.0 |
C [mm] | 58.0 |
D [mm] | 190.0 |
Serija | multifix |
Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 0.02 bar |
Odtok kondenzata | Semi-automatic |
Učinkovitost [%] | 99.999 |
