* slike so simbolične
POM reduktor, podpira 12 mm, za cev zunanja premera 10 mm
SKU: 110329RIE
EAN: 4047322117920
Reducing piece POM, Supports 12 mm, for hose exterior Ø 10 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
| Šifra | Max. delovni tlak [bar] | Za cevi O.D. [mm] | Šoba [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 110331RIE | 10 | 12 | 15 | 60.2 | Čas dobave: Predvidoma 3 - 5 dni | 8,33 € |  | |
| 110333RIE | 10 | 15 | 22 | 69.6 | Čas dobave: Predvidoma 3 - 5 dni | 8,69 € | | |
| 110336RIE | 10 | 22 | 28 | 81.8 | Čas dobave: Predvidoma 3 - 5 dni | 19,91 € | | |
| 136482RIE | 16 | 5 | 6 | 36.1 | Čas dobave: Predvidoma 3 - 5 dni | 2,57 € | | |
| 136481RIE | 16 | 4 | 6 | 36.4 | Čas dobave: Predvidoma 3 - 5 dni | 2,45 € | | |
| 136485RIE | 16 | 6 | 8 | 37.4 | Čas dobave: Predvidoma 3 - 5 dni | 3,09 € | | |
| 136487RIE | 16 | 8 | 10 | 40.4 | Čas dobave: Predvidoma 3 - 5 dni | 3,49 € | | |
| 136480RIE | 16 | 4 | 5 | 34.6 | Čas dobave: Predvidoma 3 - 5 dni | 2,20 € | | |
| 110328RIE | 16 | 8 | 12 | 40.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,94 € | | |
| 110334RIE | 10 | 18 | 22 | 71.6 | Čas dobave: Predvidoma 3 - 5 dni | 9,06 € | | |
| 110330RIE | 10 | 10 | 15 | 55.3 | Čas dobave: Predvidoma 3 - 5 dni | 7,15 € | | |
| 110332RIE | 10 | 15 | 18 | 70.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,52 € | | |
| 110329RIE | 10 | 10 | 12 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,86 € | | |
| 136483RIE | 16 | 4 | 8 | 37.2 | Čas dobave: Predvidoma 3 - 5 dni | 3,09 € | | |
| 110335RIE | 10 | 15 | 28 | 80.2 | Čas dobave: Predvidoma 3 - 5 dni | 13,46 € | | |
| 136486RIE | 16 | 6 | 10 | 40.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,17 € | | |
| 136484RIE | 16 | 5 | 8 | 37.2 | Čas dobave: Predvidoma 3 - 5 dni | 3,09 € | |
Opis
Reducing piece POM, Supports 12 mm, for hose exterior Ø 10 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Min. delovna temperatura v zraku [°C] | -20 |
| Max. delovna temperatura v zraku [°C] | 65 |
| Min. delovna temperatura v vodi [°C] | 1 |
| Max. delovna temperatura v vodi [°C] | 70 |
| Za cevi O.D. [mm] | 10 |

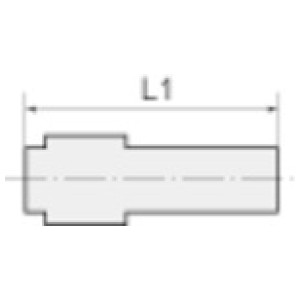

| L1 [mm] | 50.0 |
| Šoba [mm] | 12 |
| Material | Acetal polymer (POM) |
