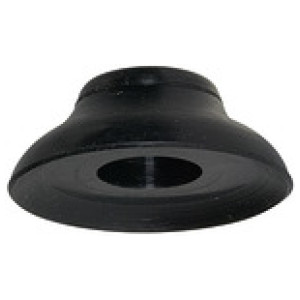

Ploska sesalna šalčka, okrogla, material NBR, »PFG« Ø: 30 mm slika

* slike so simbolične

Ploska sesalna šalčka, okrogla, material NBR, »PFG« Ø: 30 mm

SKU: 108440RIE
EAN: 4047322203050

Flat suction cup, round, Material NBR, »PFG«, ø:30 suitable connection nipple IT G 1/8, suitable connection nipple ET G 1/8

Robust and hard-wearing suction pad with a single sealing lip.

Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to handle smooth or slightly rough surfaces. Due to its flat shape, it can grip the workpiece in a very short time and withstand the forces that result from fast movement of the object during handling. It acts as the connecting element between the vacuum generator and the workpiece.

Properties:

  • Very short evacuation times
  • Suitable for high lateral forces
  • Good intrinsic stability when attached to the load
  • Supports on the bottom
  • Very short cycle times
  • High suction forces with small dimensions

Applications:

Handling workpieces with smooth or slightly rough surfaces, e.g. metal sheets,

cardboard boxes, sheets of glass, plastic parts and sheets of wood.

Čas dobave: Predvidoma 3 - 5 dni
3,90 €
Primerjaj z ostalimi
Šifra Primerna povezava priključka z notranjim navojem Primerna povezava priključka z zunanjim navojem Prostornina [cm³] Ø notranje cevi [mm] Sesalna sila [N] Min. izbočen polmer krivine [mm] Višina priključka z notranjim navojem [mm] Premer [mm] Višina priključka z zunanjim navojem [mm] Zaloga Cena Nakup Natisni
108437RIE G 1/8 G 1/8 0.400 4 9 13 13.0 15 24.0
Čas dobave: Predvidoma 3 - 5 dni
3,55 € Natisni
108443RIE G 1/8 G 1/8 7.000 4 91 75 20.0 50 31.0
Čas dobave: Predvidoma 3 - 5 dni
4,83 € Natisni
108441RIE G 1/8 G 1/8 2.700 4 44 50 19.0 35 30.0
Čas dobave: Predvidoma 3 - 5 dni
3,96 € Natisni
108438RIE G 1/8 G 1/8 0.800 4 15.5 20 15.0 20 26.0
Čas dobave: Predvidoma 3 - 5 dni
3,67 € Natisni
108445RIE M10x1.25 / G 1/4 M10x1.25 / G 1/4 25.000 6 260 150 25.0 80 41.0
Čas dobave: Predvidoma 3 - 5 dni
15,24 € Natisni
108442RIE G 1/8 G 1/8 3.800 4 57.7 50 19.0 40 30.0
Čas dobave: Predvidoma 3 - 5 dni
4,20 € Natisni
108434RIE M5 M5 0.005 2 0.75 8 11.5 5 16.5
Čas dobave: Predvidoma 3 - 5 dni
3,32 € Natisni
108436RIE M5 / G 1/8 M5 / G 1/8 0.070 2 4 13 12.5 / 12.5 10 17.5 / 23.5
Čas dobave: Predvidoma 3 - 5 dni
3,55 € Natisni
108439RIE G 1/8 G 1/8 1.300 4 26.5 25 19.0 25 30.0
Čas dobave: Predvidoma 3 - 5 dni
3,76 € Natisni
108433RIE M3 - 0.002 2 0.42 8 6.0 3.5 -
Čas dobave: Predvidoma 3 - 5 dni
3,49 € Natisni
108440RIE G 1/8 G 1/8 1.300 4 34 40 17.0 30 28.0
Čas dobave: Predvidoma 3 - 5 dni
3,90 € Natisni
108444RIE M10x1.25 / G 1/4 M10x1.25 / G 1/4 10.000 6 125 100 23.0 60 39.0
Čas dobave: Predvidoma 3 - 5 dni
13,05 € Natisni
108435RIE M5 M5 0.030 2 2.3 10 12.0 8 17.0
Čas dobave: Predvidoma 3 - 5 dni
3,42 € Natisni

Opis

Flat suction cup, round, Material NBR, »PFG«, ø:30 suitable connection nipple IT G 1/8, suitable connection nipple ET G 1/8

Robust and hard-wearing suction pad with a single sealing lip.

Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to handle smooth or slightly rough surfaces. Due to its flat shape, it can grip the workpiece in a very short time and withstand the forces that result from fast movement of the object during handling. It acts as the connecting element between the vacuum generator and the workpiece.

Properties:

  • Very short evacuation times
  • Suitable for high lateral forces
  • Good intrinsic stability when attached to the load
  • Supports on the bottom
  • Very short cycle times
  • High suction forces with small dimensions

Applications:

Handling workpieces with smooth or slightly rough surfaces, e.g. metal sheets,

cardboard boxes, sheets of glass, plastic parts and sheets of wood.

Tehnični podatki in specifikacije

Premer [mm] 30
Sesalna sila [N] 34
Primerna povezava priključka z zunanjim navojem G 1/8
Primerna povezava priključka z notranjim navojem G 1/8
Ø notranje cevi [mm] 4
Višina priključka z notranjim navojem [mm] 17.0
Prostornina [cm³] 1.300
Min. izbočen polmer krivine [mm] 40
Višina priključka z zunanjim navojem [mm] 28.0
